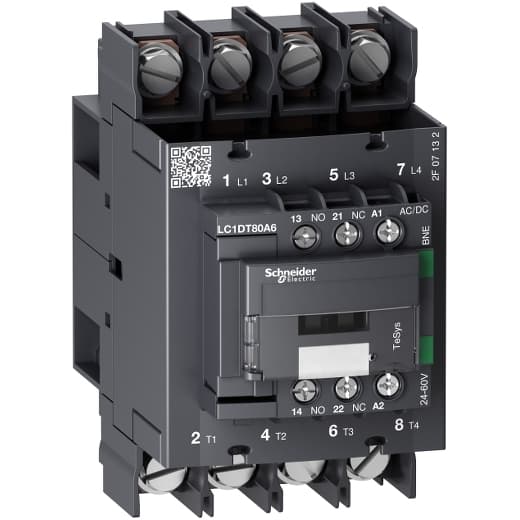

LC1DT80A6BNE Schneider Electric Industrial Automation Components

Product Details

• Product Name
  TeSys D Green
• [Uimp] Rated Impulse Withstand Voltage
  6 kV IEC 60947
• Power Dissipation Per Pole
  10.2 W AC-1
• Hold-In Power Consumption In W
  0.7 W 68 °F (20 °C)
• Product Or Component Type
  Contactor
• Auxiliary Contact Composition
  1 NO + 1 NC
• Average Impedance
  1.6 mOhm - Ith 80 A 50 Hz power circuit
• Maximum Operating Rate
  3600 cyc/h 140 °F (60 °C)
• Power Pole Contact Composition
  4 NO
• Coil Type
  AC/DC electronic
• Utilisation Category
  AC-1
• Rated Breaking Capacity
  1000 A 440 V power circuit IEC 60947
• Inrush Power In W
  16 W 68 °F (20 °C)
• Signalling Circuit Frequency
  25...400 Hz
• [Ue] Rated Operational Voltage
  Power circuit <= 690 V AC 25...400 Hz
• Electrical Durability
  0.5 Mcycles 80 A AC-1 <= 440 V
• Hold-In Power Consumption In VA
  1 VA 68 °F (20 °C)) 50/60 Hz
• Range
  TeSys
• [Ie] Rated Operational Current
  80 A 140 °F (60 °C)) <= 440 V AC-1 power circuit
• Contactor Application
  Resistive load
Device Short Name
LC1D
Overvoltage Category
III
Front Cover
With
Heat Dissipation
0.7 W 50/60 Hz
Minimum Switching Current
5 mA signalling circuit
Poles Description
4P
Mechanical Durability
6 Mcycles
Inrush Power In VA
15 VA 50/60 Hz 68 °F (20 °C))
Minimum Switching Voltage
17 V signalling circuit
Coil Technology
Built-in bidirectional peak limiting
Insulation Resistance
> 10 MOhm for signalling circuit
[Uc] Control Circuit Voltage
24...60 V AC 50/60 Hz 24...60 V DC
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
[Ui] Rated Insulation Voltage
Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1
Mounting Support
Plate Rail
[Ith] Conventional Free Air Thermal Current
80 A 140 °F (60 °C) power circuit 10 A 140 °F (60 °C) signalling circuit
Operating Time
55...65 ms closing 20...80 ms opening
Connections - Terminals
Power circuit lugs-ring terminals 0.65 in (16.5 mm)) Control circuit lugs-ring terminals 0.31 in (8 mm))
Non-Overlap Time
1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Auxiliary Contacts Type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
Irms Rated Making Capacity
1000 A 440 V power circuit IEC 60947 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1
Associated Fuse Rating
125 A gG <= 690 V type 1 power circuit 125 A gG <= 690 V type 2 power circuit 10 A gG signalling circuit IEC 60947-5-1
Tightening Torque
Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals flat Ø 6 mm M3.5 Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals Philips No 2 M3.5 Power circuit 53.10 lbf.in (6 N.m) lugs-ring terminals hexagonal 0.39 in (10 mm) M6
Control Circuit Voltage Limits
<= 0.1 Uc -40…158 °F (-40…70 °C) drop-out AC/DC 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational DC 1...1.1 Uc 140…158 °F (60…70 °C) operational AC/DC
Standards
EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
[Icw] Rated Short-Time Withstand Current
110 A 104 °F (40 °C) - 10 min power circuit 260 A 104 °F (40 °C) - 1 min power circuit 520 A 104 °F (40 °C) - 10 s power circuit 900 A 104 °F (40 °C) - 1 s power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling cir
Product Certifications
CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping)
