LC1DT80AG7 Schneider Electric Industrial Automation Components


Part#:LC1DT80AG7
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

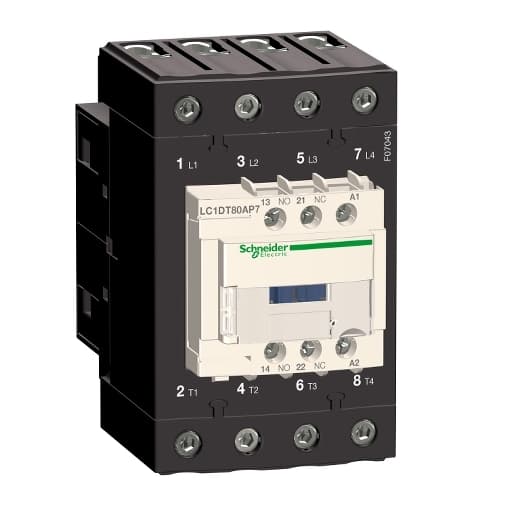

Schneider Electric LC1DT80AG7 is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminal design and screw connections. This 4-pole (4P; 4NO) contactor is rated for 80A (AC-1) and is designed for DIN rail mounting. It has a net width of 70 mm and offers a degree of protection of IP20. The control voltage (AC) ranges from 96-132Vac (120Vac nominal; 50Hz; 0.8...1.1 x Uc) to 102-132Vac (120Vac nominal; 60Hz; 0.85...1.1 x Uc). It includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, with a contacts type of 1NO+1NC instantaneous aux. The LC1DT80AG7 has a mechanical durability of 6 million operations at no load and a rated impulse voltage (Uimp) of 6 kV. The rated voltage (AC) for phase-to-phase connections is up to 690 V.
Product Details
- Control Circuit Type AC 60 Hz
- Range TeSys
- Average Impedance 1.6 mOhm - Ith 80 A 50 Hz power circuit
- Front Cover With
- Hold-In Power Consumption In VA 13 VA 60 Hz 0.3 68 °F (20 °C))
- Minimum Switching Current 5 mA signalling circuit
- Poles Description 4P
- Overvoltage Category III
- Coil Technology Without built-in suppressor module
- Minimum Switching Voltage 17 V signalling circuit
- Utilisation Category AC-1
- [Ie] Rated Operational Current 80 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
- Heat Dissipation 4…5 W 60 Hz
- Contactor Application Resistive load
- Rated Breaking Capacity 1000 A 440 V power circuit IEC 60947
- Maximum Operating Rate 3600 cyc/h 140 °F (60 °C)
- Product Name TeSys D
- Auxiliary Contact Composition 1 NO + 1 NC
- Signalling Circuit Frequency 25...400 Hz
- Power Pole Contact Composition 4 NO
- Product Or Component Type Contactor
- [Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947
- Electrical Durability 1.4 Mcycles 80 A AC-1 <= 440 V
- Mechanical Durability 6 Mcycles
- Power Dissipation Per Pole 10.2 W AC-1
- Insulation Resistance > 10 MOhm for signalling circuit
- Device Short Name LC1D
- [Uc] Control Circuit Voltage 120 V AC 60 Hz
- Inrush Power In VA 140 VA 60 Hz 0.75 68 °F (20 °C))
- Auxiliary Contacts Type Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
- Operating Time 4...19 ms opening 12...26 ms closing
- [Ue] Rated Operational Voltage Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
- [Ith] Conventional Free Air Thermal Current 10 A 140 °F (60 °C) signalling circuit 80 A 140 °F (60 °C) power circuit
- Non-Overlap Time 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Standards CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
- Mounting Support Plate Rail
- Associated Fuse Rating 10 A gG signalling circuit IEC 60947-5-1 125 A gG <= 690 V type 1 power circuit 125 A gG <= 690 V type 2 power circuit
- Control Circuit Voltage Limits 0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 60 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 60 Hz
- Connections - Terminals Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)fle
- Irms Rated Making Capacity 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 1000 A 440 V power circuit IEC 60947
- Tightening Torque Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 70.81 lbf.in (8 N.m) screw clamp terminals 0.04…0.05 in² (25…35 mm²) hexagonal 0.16
- [Icw] Rated Short-Time Withstand Current 520 A 104 °F (40 °C) - 10 s power circuit 900 A 104 °F (40 °C) - 1 s power circuit 110 A 104 °F (40 °C) - 10 min power circuit 260 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling cir
- [Ui] Rated Insulation Voltage Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL Power circuit 690 V IEC 60947-4-1
- Product Certifications UL DNV BV CCC CSA LROS (Lloyds register of shipping) GL RINA GOST
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
