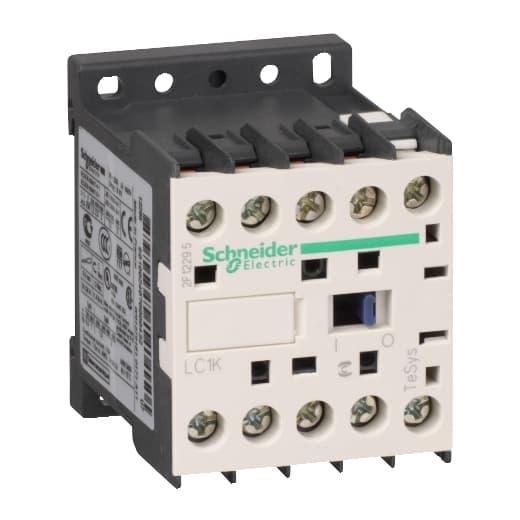

LC1K0910M7 Schneider Electric Industrial Automation Components

Product Details

• Poles Description
  3P
• Heat Dissipation
  1.3 W
• Hold-In Power Consumption In VA
  4.5 VA 68 °F (20 °C))
• Device Application
  Control
• Insulation Resistance
  > 10 MOhm for signalling circuit
• Auxiliary Contact Composition
  1 NO
• Maximum Operating Rate
  3600 cyc/h
• Power Pole Contact Composition
  3 NO
• Product Or Component Type
  Contactor
• Product Name
  TeSys K
• Inrush Power In VA
  30 VA 68 °F (20 °C))
• Non Overlap Distance
  0.02 in (0.5 mm)
• Control Circuit Type
  AC at 50/60 Hz
• Signalling Circuit Frequency
  <= 400 Hz
• Range
  TeSys
• [Uc] Control Circuit Voltage
  220...230 V AC 50/60 Hz
• Average Impedance
  3 mOhm - Ith 20 A 50 Hz power circuit
• Minimum Switching Voltage
  17 V signalling circuit
• Minimum Switching Current
  5 mA signalling circuit
• Auxiliary Contacts Type
  Instantaneous 1 NO
Overvoltage Category
III
[Ith] Conventional Free Air Thermal Current
20 A 122 °F (50 °C) power circuit 10 A 122 °F (50 °C) signalling circuit
Contactor Application
Motor control Resistive load
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Control Circuit Voltage Limits
Operational: 0.8...1.15 Uc (at <50 °C) Drop-out: 0.2...0.75 Uc (at <50 °C)
Operating Time
10...20 ms coil de-energisation and NO opening 10...20 ms coil energisation and NO closing
Utilisation Category
AC-4 AC-3 AC-1
[Ie] Rated Operational Current
20 A 122 °F (50 °C)) <= 440 V AC AC-1 power circuit 9 A<= 440 V AC AC-3 power circuit 16 A 158 °F (70 °C)) 690 V AC AC-1 power circuit
Irms Rated Making Capacity
110 A AC power circuit NF C 63-110 110 A AC power circuit IEC 60947 110 A AC signalling circuit IEC 60947
Associated Fuse Rating
25 A gG <= 440 V power circuit 25 A aM power circuit 10 A gG signalling circuit IEC 60947 10 A gG signalling circuit VDE 0660
Mechanical Robustness
Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 Shocks contac
Rated Breaking Capacity
110 A 415 V IEC 60947 110 A 440 V IEC 60947 80 A 500 V IEC 60947 110 A 220...230 V IEC 60947 110 A 380...400 V IEC 60947 70 A 660...690 V IEC 60947
Motor Power Kw
2.2 kW 220...230 V AC 50/60 Hz AC-3 4 kW 380...415 V AC 50/60 Hz AC-3 4 kW 440 V AC 50/60 Hz AC-3 4 kW 480 V AC 50/60 Hz AC-3 4 kW 500...600 V AC 50/60 Hz AC-3 4 kW 660...690 V AC 50/60 Hz AC-3 2.2 kW 400 V AC 50/60 Hz AC-4
