LC1K120047B7 Schneider Electric Contactors

LC1K120047B7 on Powermatic Associates
Schneider Electric

Part#:LC1K120047B7

Manufacturer:Schneider Electric

Category:Contactors

Product Lifecycle:Active

Product description

Schneider Electric LC1K120047B7 is a magnetic contactor within the K sub-range, featuring faston spade connections for quick installation. This 4-pole (4P; 4NO) contactor is designed to handle a rated current of 20A under AC-1 conditions and 144A (Irms AC), with a net width of 45 mm. It offers a degree of protection rated at IP20 and operates with a control voltage (AC) range of 19.2-27.6Vac (24Vac nominal; 50Hz/60Hz; 0.8...1.15 x Uc). The LC1K120047B7 is capable of operating at a rated operating voltage (Ue) up to 690 V and a rated impulse voltage (Uimp) of 8 kV. It has no normally open (NO) or normally closed (NC) auxiliary contacts. Its mechanical durability is rated for 10,000,000 operations at no load, and it supports a rated voltage (AC) phase-to-phase of 690 V.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

LC1K120047B7 Schneider Electric

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

Recently viewed products

Relevant products

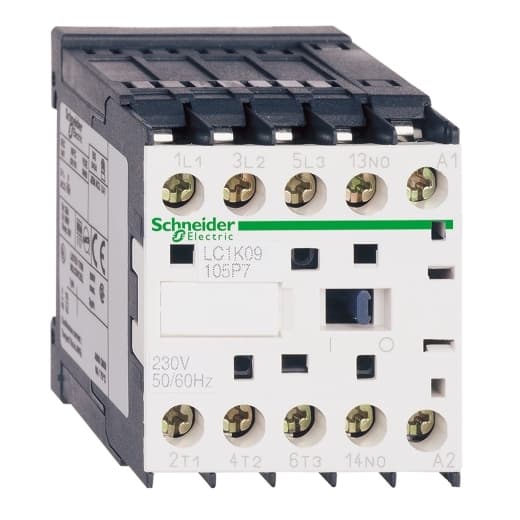

LC1K06015F7 on Powermatic Associates

LC1K06015F7

Verified stock: 0

Schneider Electric LC1K06015F7 is a magnetic contactor within the K sub-range, featuring solder pins connections and a 3-pole (3P; 3NO) configuration. It has a rated current of 20A under AC-1 conditions and 6A at 440Vac under AC-3 conditions. The contactor's net width is 45 mm, and it offers an IP20 degree of protection. The control voltage (AC) ranges from 88-126Vac (110Vac nominal; 50Hz/60Hz; 0.8...1.15 x Uc), with a rated operating voltage (Ue) of 690 V. It includes 0 normally open (NO) auxiliary contacts and 1 normally closed (NC) auxiliary contact. The rated impulse voltage (Uimp) is 8 kV. Rated active power varies with voltage, offering 1.5kW at 220-230Vac, 2.2kW at 380-415Vac, and 3kW at 440Vac, 500Vac, and 660-690Vac, all under AC-3 conditions. Its mechanical durability at no load is rated for 10,000,000 operations, and the rated voltage (AC) phase-to-phase is 690 V.

Schneider Electric

LC1K0601U7 on Powermatic Associates

LC1K0601U7

Verified stock: 0

Schneider Electric LC1K0601U7 is a magnetic contactor within the K sub-range, featuring screw connections and designed with 3 poles (3P; 3NO). It has a rated current of 20A under AC-1 conditions and 6A at 440Vac under AC-3 conditions. The contactor measures 45 mm in net width and offers a degree of protection rated at IP20. Its control voltage for AC ranges from 192-276Vac (230/240Vac nominal; 50Hz/60Hz; 0.8...1.15 x Uc), with a rated operating voltage (Ue) of 690 V. This model includes 0 Normally Open (NO) auxiliary contacts and 1 Normally Closed (NC) auxiliary contact. The rated impulse voltage (Uimp) is 8 kV, and the rated active power varies from 1.5kW at 220-230Vac to 3kW at 660-690Vac, all under AC-3 conditions. The mechanical durability of this contactor is rated at 10 million operations at no load, and it supports a phase-to-phase rated voltage (AC) of 690 V.

Schneider Electric

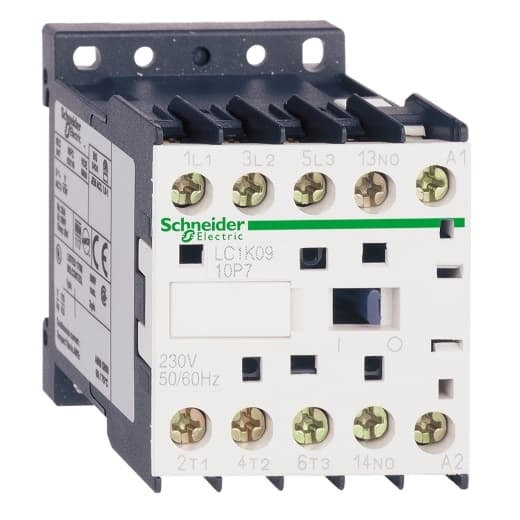

LC1K0601P7 on Powermatic Associates

LC1K0601P7

Verified stock: 0

Schneider Electric LC1K0601P7 is a magnetic contactor within the K sub-range, featuring screw connections and designed with 3 poles (3P; 3NO). It has a rated current of 20A under AC-1 conditions and 6A at 440Vac under AC-3 conditions. The contactor measures 45 mm in net width and offers a degree of protection rated at IP20. Its control voltage (AC) spans from 184-264Vac (230Vac nominal; 50Hz/60Hz; 0.8...1.15 x Uc), with a rated operating voltage (Ue) of 690 V. This model comes without Normally Open (NO) auxiliary contacts but includes 1 Normally Closed (NC) auxiliary contact. The rated impulse voltage (Uimp) is 8 kV, and it supports rated active power (kW) of 1.5kW at 220-230Vac, 2.2kW at 380-415Vac, and 3kW at 440Vac, 500Vac, and 660-690Vac, all under AC-3 conditions. Its mechanical durability is noted at 10,000,000 operations at no load, with a phase-to-phase rated voltage (AC) of 690 V.

Schneider Electric

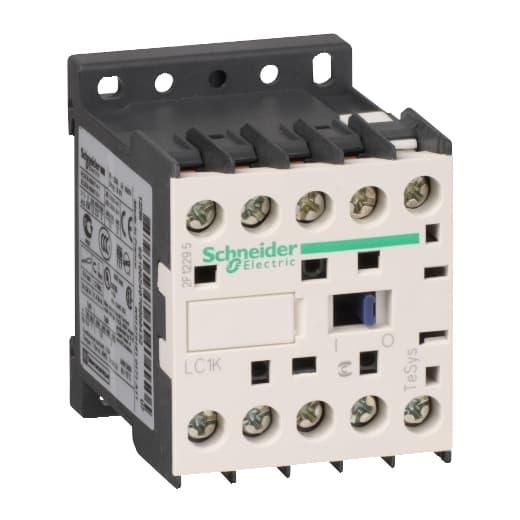

LC1K0601E7 on Powermatic Associates

LC1K0601E7

Verified stock: 0

Schneider Electric LC1K0601E7 is a magnetic contactor within the K sub-range, featuring screw connections and three poles (3P; 3NO). It has a rated current of 20A for AC-1 and 6A for 440Vac in AC-3. The net width of the contactor is 45 mm, and it offers a degree of protection of IP20. The control voltage (AC) ranges from 38.4-55.2Vac (48Vac nominal; 50Hz/60Hz; 0.8...1.15 x Uc), with a rated operating voltage (Ue) of 690 V. This model includes 0 normally open (NO) auxiliary contacts and 1 normally closed (NC) auxiliary contact. The rated impulse voltage (Uimp) is 8 kV. It supports rated active power of 1.5kW at 220-230Vac, 2.2kW at 380-415Vac, and 3kW at 440Vac, 500Vac, and 660-690Vac, all in AC-3. The mechanical durability of the LC1K0601E7, at no load, is rated for 10,000,000 operations, and the rated voltage (AC) phase-to-phase is 690 V.

Schneider Electric

LC1K1610F7 on Powermatic Associates

LC1K1610F7

Verified stock: 0

Schneider Electric LC1K1610F7 is a magnetic contactor within the K sub-range, featuring screw connections and three poles (3P; 3NO). It has a rated current of 20A (AC-1) and 16A (440Vac; AC-3), with a net width of 45 mm. This contactor is designed with a degree of protection IP20 and operates with a control voltage (AC) of 94-126Vac (110Vac nom.; 50Hz/60Hz; 0.85...1.15 x Uc). The rated operating voltage (Ue) is 690 V, and it includes 1 Normally Open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 8 kV, and the rated active power ranges from 4kW (220-230Vac; AC-3) to 7.5kW (380-415Vac; AC-3), 5.5kW (440Vac; AC-3), 4kW (500Vac; AC-3), and 4kW (660-690Vac; AC-3). It has no Normally Closed (NC) auxiliary contacts and boasts a mechanical durability of 10,000,000 operations at no load. The rated voltage (AC) phase-to-phase is 690 V.

Schneider Electric

FAQ

Out if stock but available for backorder.

Schneider Electric LC1K120047B7 is a magnetic contactor within the K sub-range, featuring faston spade connections for quick installation. This 4-pole (4P; 4NO) contactor is designed to handle a rated current of 20A under AC-1 conditions and 144A (Irms AC), with a net width of 45 mm. It offers a degree of protection rated at IP20 and operates with a control voltage (AC) range of 19.2-27.6Vac (24Vac nominal; 50Hz/60Hz; 0.8...1.15 x Uc). The LC1K120047B7 is capable of operating at a rated operating voltage (Ue) up to 690 V and a rated impulse voltage (Uimp) of 8 kV. It has no normally open (NO) or normally closed (NC) auxiliary contacts. Its mechanical durability is rated for 10,000,000 operations at no load, and it supports a rated voltage (AC) phase-to-phase of 690 V.
