LP1K09008UD Schneider Electric Contactors

LP1K09008UD on Powermatic Associates
Schneider Electric

Part#:LP1K09008UD

Manufacturer:Schneider Electric

Category:Contactors

Product Lifecycle:Active

Product description

Schneider Electric LP1K09008UD is a magnetic contactor within the K sub-range, featuring screw connections and a 4-pole (2NO+2NC) configuration. It has a rated current of 20A (AC-1) and 110A (Irms AC), with a net width of 45 mm. This contactor is designed with a degree of protection rated at IP20 and operates with a control voltage (DC) range of 200-287.5Vdc (250Vdc nominal; 0.8...1.15 x Uc). The rated operating voltage (Ue) is 690 V, and it comes without normally open (NO) or normally closed (NC) auxiliary contacts. Its mechanical durability is specified at 10,000,000 operations at no load, and it supports a rated voltage (AC) phase-to-phase of 690 V.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

LP1K09008UD Schneider Electric

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

Recently viewed products

M-2218-3.0ES500 on Powermatic Associates

M-2218-3.0ES500

Novanta IMS

Novanta IMS M-2218-3.0ES500 is a 2-phase DC stepper motor within the Stepper motors sub-range, featuring a 500-line single-end optical encoder with an index mark and a smooth shaft with a single flat (single shaft end) single (1) motor stack. It is designed with bare end flying leads for connection, operates on a rated current of 3A, and supports a supply voltage range of 24Vdc-75Vdc, including 48Vdc, 60Vdc, and 72Vdc options. This stepper motor is equipped with a 57x57mm flange for mounting, can operate in ambient air temperatures ranging from -25 to +40°C, and has a moment of inertia of 0.12kg.cm^2. It delivers a stall torque of 71N.cm (100oz-in) and can be stored in temperatures ranging from -25 to +70°C. The motor offers a resolution of 1.8° step angle.

0 in stock

Relevant products

LP1K0601BD on Powermatic Associates

LP1K0601BD

Verified stock: 0

Schneider Electric LP1K0601BD is a magnetic contactor from the K sub-range, designed with screw connections and equipped with 3 poles (3P; 3NO). It has a rated current of 6A at 440Vac under AC-3 conditions and a net width of 45 mm. This contactor offers a degree of protection of IP20 and operates with a control voltage (DC) range of 19.2-27.6Vdc, nominally at 24Vdc. The rated operating voltage (Ue) is up to 690 V, and it does not have Normally Open (NO) auxiliary contacts but includes 1 Normally Closed (NC) auxiliary contact. The rated active power varies with voltage, providing 1.5kW at 220-230Vac, 2.2kW at 380-415Vac, and 3kW at 440Vac, 500Vac, and 660-690Vac, all under AC-3 conditions. Its mechanical durability is rated at 10 million operations at no load, and the rated voltage (AC) phase-to-phase is 690 V.

Schneider Electric

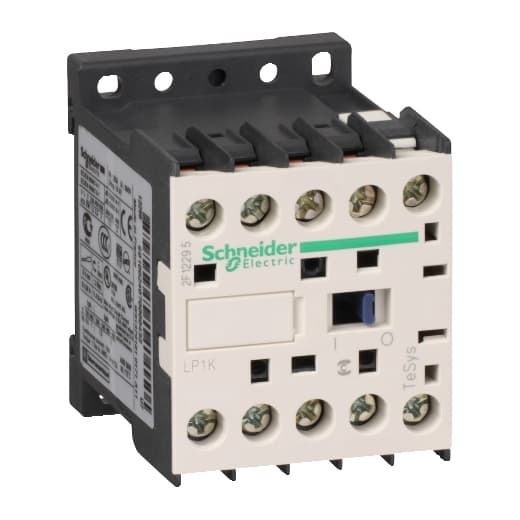

LP1K0910JD on Powermatic Associates
