Part#:M9F17320

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

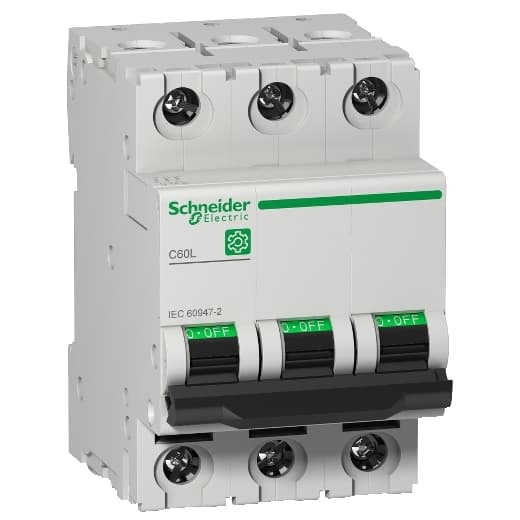

Schneider Electric M9F17320 is a Miniature Circuit Breaker (MCB) within the C60L sub-range, designed with 3 poles and a rated current of 20A. It features a rated insulation voltage (Ui) of 500V, a rated operating voltage (Ue) of 440V, and a rated impulse voltage (Uimp) of 6kV. This MCB is suitable for DC applications with a rated voltage of 125Vdc and AC phase-to-phase applications at 440V. All three poles are protected, and it operates with a tripping curve C.

Product Details

  • Breaking Capacity
    50 kA Icu <= 125 V DC EN/IEC 60947-2 50 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 25 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 20 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
  • [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz between phases 415 V AC 50/60 Hz between phases 440 V AC 50/60 Hz between phases <= 125 V DC
  • [Ics] Rated Service Breaking Capacity
    25 kA 50 % EN/IEC 60947-2 - 240 V AC 50/60 Hz 12.5 kA 50 % EN/IEC 60947-2 - 415 V AC 50/60 Hz 10 kA 50 % EN/IEC 60947-2 - 440 V AC 50/60 Hz 50 kA 100 % EN/IEC 60947-2 - <= 125 V DC
  • Connections - Terminals
    Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - rigid Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - flexible Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - flexible with ferrule
  • Product Certifications
    EAC CCC
  • Network Type
    DC AC
  • Magnetic Tripping Limit
    8.5 x In +/- 20 % AC 12 x In +/- 20 % DC
  • Color
    Gray
  • Earth-Leakage Protection
    Separate block
  • Tightening Torque
    17.70 lbf.in (2 N.m) top or bottom
  • Wire Stripping Length
    0.55 in (14 mm) top or bottom
  • Provision For Padlocking
    Padlockable
  • Electrical Durability
    10000 cycles
  • Mechanical Durability
    20000 cycles
  • Net Weight
    0.79 lb(US) (0.36 kg)
  • Width
    2.13 in (54 mm)
  • Depth
    2.83 in (72 mm)
  • Mounting Mode
    Clip-on
  • Mounting Support
    DIN rail
  • Height
    3.19 in (81 mm)
  • 9 Mm Pitches
    6
  • [Uimp] Rated Impulse Withstand Voltage
    6 kVEN/IEC 60947-2
  • Contact Position Indicator
    Yes
  • [Ui] Rated Insulation Voltage
    500 V AC 50/60 Hz EN/IEC 60947-2
  • Local Signalling
    ON/OFF indication
  • Control Type
    Toggle
  • Limitation Class
    3
  • Utilisation Category
    Category A EN/IEC 60947-2
  • Network Frequency
    50/60 Hz
  • Standards
    EN/IEC 60947-2
  • Suitability For Isolation
    Yes EN/IEC 60947-2
  • Curve Code
    C
  • Trip Unit Technology
    Thermal-magnetic
  • Line Rated Current
    20 A 122 °F (50 °C) EN/IEC 60947-2
  • Device Application
    Distribution
  • Product Or Component Type
    Miniature circuit-breaker
  • Device Short Name
    C60L
  • Product Name
    Multi 9 C60
  • Number Of Protected Poles
    3
  • Range
    Multi 9
  • Poles Description
    3P

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M9F17320 on Powermatic Associates is $718.50. Order now.

M9F17320 Related Documents
