M9F22116 Schneider Electric Industrial Automation Components

M9F22116 on Powermatic Associates
Schneider Electric

Part#:M9F22116

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

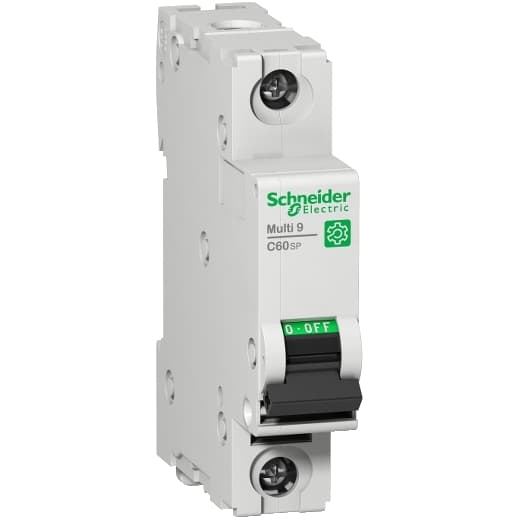

Schneider Electric M9F22116 is a Miniature Circuit Breaker (MCB) within the C60SP sub-range, designed for a single pole configuration. It features a rated current of 16A and is compliant with UL1077 standards. The MCB has a rated insulation voltage (Ui) of 500V, a DC rated voltage of 60Vdc, and an AC operating voltage (Ue) of 415V. It is capable of handling an impulse voltage (Uimp) of 6kV. The short circuit breaking rating is specified as 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 277Vac and 65Vdc. The rated voltage for phase-to-neutral applications is 277V. This product is designed to protect a single pole and features a C tripping curve.

Product Details

  • Line Rated Current
    16 A 77 °F (25 °C) EN/IEC 60947-2
  • Contact Position Indicator
    Yes
  • Range
    Multi 9
  • Local Signalling
    ON/OFF indication
  • Tightening Torque
    22.13 lbf.in (2.5 N.m) top or bottom
  • [Ui] Rated Insulation Voltage
    500 V AC EN/IEC 60947-2
  • Width
    0.71 in (18 mm)
  • Device Application
    Distribution
  • Mounting Support
    DIN rail
  • Earth-Leakage Protection
    Without
  • Device Short Name
    C60SP
  • Trip Unit Technology
    Thermal-magnetic
  • Mounting Mode
    Clip-on
  • Color
    Gray
  • Height
    3.19 in (81 mm)
  • Number Of Protected Poles
    1
  • Suitability For Isolation
    Yes EN/IEC 60947-2
  • Depth
    2.83 in (72 mm)
  • Wire Stripping Length
    0.55 in (14 mm) top or bottom
  • Curve Code
    C
  • Electrical Durability
    10000 cycles
  • Control Type
    Toggle
  • Poles Description
    1P
  • Product Name
    Multi 9 C60
  • [Uimp] Rated Impulse Withstand Voltage
    6 kVEN/IEC 60947-2
  • Provision For Padlocking
    Padlockable
  • Product Or Component Type
    Miniature circuit-breaker
  • 9 Mm Pitches
    2
  • Mechanical Durability
    20000 cycles
  • Magnetic Tripping Limit
    8.5 x In +/- 20 % AC 12 x In +/- 20 % DC
  • Network Type
    DC AC
  • [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz 415 V AC 50/60 Hz 60 V DC
  • Connections - Terminals
    Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²
  • Standards
    EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235
  • Product Certifications
    IEC CCC UR CSA
  • [Ics] Rated Service Breaking Capacity
    2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 20 kA 100 % EN/IEC 60947-2 - 60 V DC 2.25 kA 75 % GB 14048.2 - 415 V AC 7.5 kA 75 % GB 14048.2 - 240 V AC 20 kA 100 % GB 14048.2 - 60 V DC
  • Breaking Capacity
    10 kA AIR 277 V AC UL 1077 14 kA AIR 240 V AC UL 1077 14 kA AIR 120 V AC UL 1077 10 kA AIR 65 V DC UL 1077 10 kA AIR 277 V AC CSA C22.2 No 235 14 kA AIR 240 V AC CSA C22.2 No 235 14 kA AIR 120 V AC CSA C22.2 No 235 10 kA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M9F22116 on Powermatic Associates is $101.00. Order now.
