M9F22145 Schneider Electric Industrial Automation Components

M9F22145 on Powermatic Associates
Schneider Electric

Part#:M9F22145

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

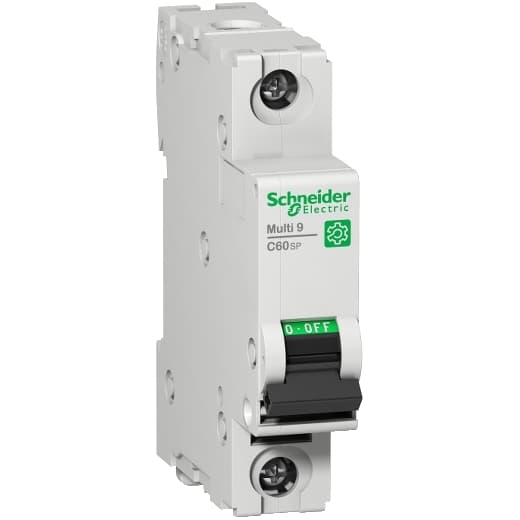

Schneider Electric M9F22145 is a Miniature Circuit Breaker (MCB) within the C60SP sub-range, designed for a single pole configuration. It features a rated current of 45A and is compliant with UL1077 standards. The MCB has a rated insulation voltage (Ui) of 500V, a DC rated voltage of 60Vdc, and an AC operating voltage (Ue) of 415V, with a phase-to-neutral rated voltage of 277V. It is equipped to handle rated impulse voltage (Uimp) of 6kV. The short circuit breaking rating is specified at 14kA AIR for both 120Vac and 240Vac, and 10kA AIR for 277Vac and 65Vdc. The device protects a single pole and operates with a C tripping curve.

Product Details

  • Breaking Capacity
    10 kA AIR 65 V DC UL 1077 10 kA AIR 65 V DC CSA C22.2 No 235 3 kA Icu 415 V AC EN/IEC 60947-2 10 kA Icu 240 V AC EN/IEC 60947-2 20 kA Icu 60 V DC EN/IEC 60947-2 3 kA Icu 415 V AC GB 14048.2 10 kA Icu 240 V AC GB 14048.2
  • [Ics] Rated Service Breaking Capacity
    2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 20 kA 100 % EN/IEC 60947-2 - 60 V DC 2.25 kA 75 % GB 14048.2 - 415 V AC 7.5 kA 75 % GB 14048.2 - 240 V AC 20 kA 100 % GB 14048.2 - 60 V DC
  • Standards
    EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235
  • Product Certifications
    IEC CCC UR CSA
  • [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz 415 V AC 50/60 Hz 60 V DC
  • Connections - Terminals
    Tunnel type terminal top or bottom) 0.00…0.05 in² (1…35 mm²) AWG 18...AWG 2) - rigid Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 3) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²
  • Network Type
    AC DC
  • Magnetic Tripping Limit
    8.5 x In +/- 20 % AC 12 x In +/- 20 % DC
  • Earth-Leakage Protection
    Without
  • Tightening Torque
    30.98 lbf.in (3.5 N.m) top or bottom
  • Wire Stripping Length
    0.55 in (14 mm) top or bottom
  • Height
    3.19 in (81 mm)
  • Provision For Padlocking
    Padlockable
  • Mounting Support
    DIN rail
  • Contact Position Indicator
    Yes
  • Depth
    2.83 in (72 mm)
  • Width
    0.71 in (18 mm)
  • Color
    Gray
  • Electrical Durability
    10000 cycles
  • Mechanical Durability
    20000 cycles
  • 9 Mm Pitches
    2
  • Mounting Mode
    Clip-on
  • Local Signalling
    ON/OFF indication
  • Control Type
    Toggle
  • [Uimp] Rated Impulse Withstand Voltage
    6 kVEN/IEC 60947-2
  • [Ui] Rated Insulation Voltage
    500 V AC EN/IEC 60947-2
  • Suitability For Isolation
    Yes conforming to EN/IEC 60947-2
  • Curve Code
    C
  • Trip Unit Technology
    Thermal-magnetic
  • Range
    Multi 9
  • Number Of Protected Poles
    1
  • Line Rated Current
    45 A 77 °F (25 °C) EN/IEC 60947-2
  • Poles Description
    1P
  • Product Name
    Multi 9 C60
  • Device Application
    Distribution
  • Device Short Name
    C60SP
  • Product Or Component Type
    Miniature circuit-breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M9F22145 on Powermatic Associates is $166.50. Order now.
