M9F23120 Schneider Electric Industrial Automation Components

M9F23120 on Powermatic Associates
Schneider Electric

Part#:M9F23120

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

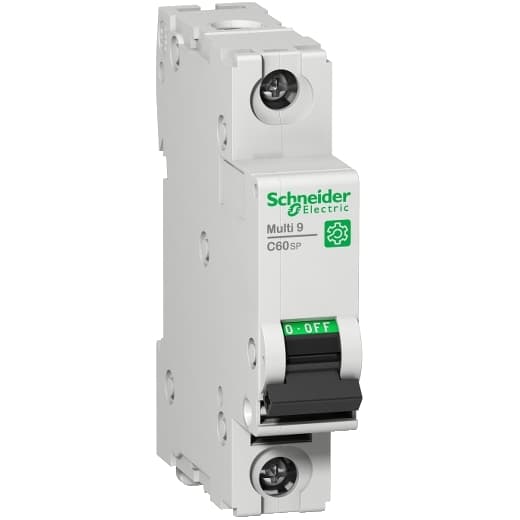

Schneider Electric M9F23120 is a Miniature Circuit Breaker (MCB) within the C60SP sub-range, designed for a single pole configuration. It features a rated current of 20A and is compliant with UL1077 standards. The MCB has a rated insulation voltage (Ui) of 500V, a DC rated voltage of 60Vdc, and an AC operating voltage (Ue) of 415V. It is capable of handling an impulse voltage (Uimp) of 6kV. The short circuit breaking rating is specified as 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 277Vac and 65Vdc. The rated voltage for phase-to-neutral applications is 277V. This product protects a single pole and is characterized by a D tripping curve.

Product Details

  • Poles Description
    1P
  • 9 Mm Pitches
    2
  • Contact Position Indicator
    Yes
  • Mechanical Durability
    20000 cycles
  • Mounting Mode
    Clip-on
  • Line Rated Current
    20 A 77 °F (25 °C) EN/IEC 60947-2
  • Suitability For Isolation
    Yes EN/IEC 60947-2
  • Depth
    2.83 in (72 mm)
  • Range
    Multi 9
  • Trip Unit Technology
    Thermal-magnetic
  • [Uimp] Rated Impulse Withstand Voltage
    6 kVEN/IEC 60947-2
  • Device Short Name
    C60SP
  • Width
    0.71 in (18 mm)
  • Device Application
    Distribution
  • Product Name
    Multi 9 C60
  • Height
    3.19 in (81 mm)
  • Number Of Protected Poles
    1
  • Curve Code
    D
  • Control Type
    Toggle
  • Product Or Component Type
    Miniature circuit-breaker
  • [Ui] Rated Insulation Voltage
    500 V AC EN/IEC 60947-2
  • Tightening Torque
    22.13 lbf.in (2.5 N.m) top or bottom
  • Earth-Leakage Protection
    Without
  • Color
    Gray
  • Provision For Padlocking
    Padlockable
  • Wire Stripping Length
    0.55 in (14 mm) top or bottom
  • Mounting Support
    DIN rail
  • Electrical Durability
    10000 cycles
  • Local Signalling
    ON/OFF indication
  • Magnetic Tripping Limit
    12 x In +/- 20 % AC 17 x In +/- 20 % DC
  • Network Type
    AC DC
  • Connections - Terminals
    Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²
  • [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz 415 V AC 50/60 Hz 60 V DC
  • Standards
    EN/IEC 60947-2 GB 14048.2 UL 1077 CSA C22.2 No 235
  • Product Certifications
    IEC CCC UR CSA
  • [Ics] Rated Service Breaking Capacity
    2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 20 kA 100 % EN/IEC 60947-2 - 60 V DC 2.25 kA 75 % GB 14048.2 - 415 V AC 7.5 kA 75 % GB 14048.2 - 240 V AC 20 kA 100 % GB 14048.2 - 60 V DC
  • Breaking Capacity
    10 kA AIR 277 V AC UL 1077 14 kA AIR 240 V AC UL 1077 14 kA AIR 120 V AC UL 1077 10 kA AIR 65 V DC UL 1077 10 kA AIR 277 V AC CSA C22.2 No 235 14 kA AIR 240 V AC CSA C22.2 No 235 14 kA AIR 120 V AC CSA C22.2 No 235 10 kA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M9F23120 on Powermatic Associates is $101.00. Order now.
