M9F44106 Schneider Electric Industrial Automation Components

M9F44106 on Powermatic Associates
Schneider Electric

Part#:M9F44106

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

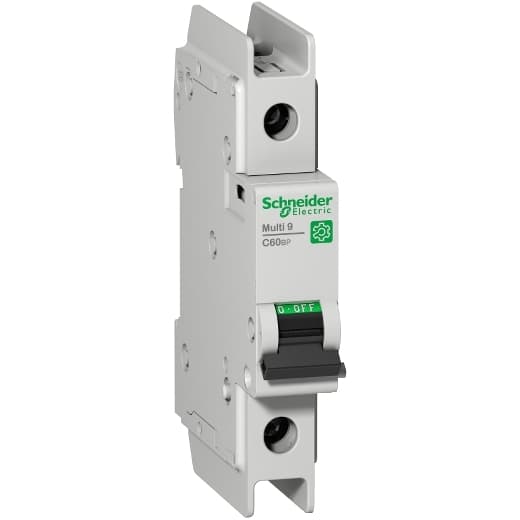

Schneider Electric M9F44106 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed for a single pole configuration. It features a rated current of 6A and is compliant with UL489 standards. The MCB operates with a rated insulation voltage (Ui) of 500V, a DC rated voltage of 60Vdc, and an AC rated voltage of 240V phase-to-neutral and 415V phase-to-phase. It is equipped to handle rated impulse voltage (Uimp) of 6kV and offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 277Vac and 60Vdc. The protected pole count is 1, with a tripping curve of Z.

Product Details

  • Breaking Capacity
    3 kA Icu 415 V AC EN/IEC 60947-2 10 kA Icu 240 V AC EN/IEC 60947-2 20 kA Icu 60 V DC EN/IEC 60947-2 3 kA Icu 415 V AC GB 14048.2 10 kA Icu 240 V AC GB 14048.2 20 kA Icu 60 V DC GB 14048.2 10 kA AIR 277 V AC UL 489 14 kA
  • [Ics] Rated Service Breaking Capacity
    2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 2.25 kA 75 % GB 14048.2 - 415 V AC 7.5 kA 75 % GB 14048.2 - 240 V AC 15 kA 75 % GB 14048.2 - 60 V DC 15 kA 75 % EN/IEC 60947-2 - 60 V DC
  • Product Certifications
    IEC CCC CSA UL
  • Standards
    EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5
  • [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz 415 V AC 50/60 Hz 60 V DC
  • Connections - Terminals
    Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²
  • Magnetic Tripping Limit
    3 x In +/- 20 % AC 4.2 x In +/- 20 % DC
  • Network Type
    AC DC
  • Earth-Leakage Protection
    Without
  • Electrical Durability
    10000 cycles
  • Wire Stripping Length
    0.55 in (14 mm) top or bottom
  • Provision For Padlocking
    Padlockable
  • Tightening Torque
    22.13 lbf.in (2.5 N.m) top or bottom
  • Color
    Gray
  • Mechanical Durability
    20000 cycles
  • Height
    4.06 in (103 mm)
  • Width
    0.71 in (18 mm)
  • Depth
    2.83 in (72 mm)
  • Mounting Support
    DIN rail
  • Mounting Mode
    Clip-on
  • 9 Mm Pitches
    2
  • Local Signalling
    ON/OFF indication
  • Control Type
    Toggle
  • [Uimp] Rated Impulse Withstand Voltage
    6 kVEN/IEC 60947-2
  • Contact Position Indicator
    Yes
  • Curve Code
    Z
  • [Ui] Rated Insulation Voltage
    500 V AC EN/IEC 60947-2
  • Suitability For Isolation
    Yes EN/IEC 60947-2
  • Trip Unit Technology
    Thermal-magnetic
  • Line Rated Current
    6 A 77 °F (25 °C) EN/IEC 60947-2
  • Number Of Protected Poles
    1
  • Device Application
    Distribution
  • Poles Description
    1P
  • Device Short Name
    C60BP
  • Product Or Component Type
    Miniature circuit-breaker
  • Range
    Multi 9
  • Product Name
    Multi 9 C60

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M9F44106 on Powermatic Associates is $114.00. Order now.
