Part#:M9P22725

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

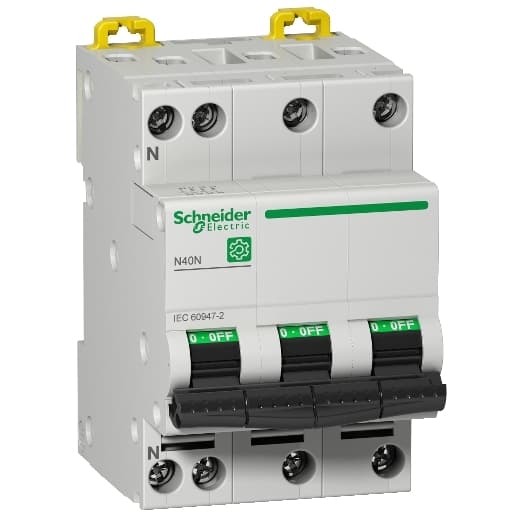

Schneider Electric M9P22725 is a Miniature Circuit Breaker (MCB) within the N40N sub-range, designed with 4 poles and a rated current of 25A. It features a rated insulation voltage (Ui) of 500 V and a rated impulse voltage (Uimp) of 6 kV. The MCB operates with a rated voltage (AC) of 240 V phase-to-neutral and has 3 protected poles. It is characterized by a tripping curve C, which specifies its tripping characteristics.

Product Details

  • Line Rated Current
    25 A 122 °F (50 °C) EN/IEC 60947-2
  • Suitability For Isolation
    Yes EN/IEC 60947-2
  • [Uimp] Rated Impulse Withstand Voltage
    4 kVEN/IEC 60947-2
  • Width
    2.13 in (54 mm)
  • Tightening Torque
    17.70 lbf.in (2 N.m) top or bottom
  • Magnetic Tripping Limit
    8.5 x In +/- 20 % AC
  • Color
    Gray
  • Wire Stripping Length
    0.51 in (13 mm) top or bottom
  • Product Name
    Multi 9 N40
  • Device Short Name
    N40N
  • Network Type
    AC
  • Control Type
    Toggle
  • Net Weight
    0.71 lb(US) (0.322 kg)
  • Neutral Position
    Left
  • Curve Code
    C
  • Limitation Class
    3 EN/IEC 60947-2
  • 9 Mm Pitches
    6
  • Device Application
    Distribution
  • [Ics] Rated Service Breaking Capacity
    7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz
  • Standards
    EN/IEC 60947-2
  • Provision For Padlocking
    Padlockable
  • Product Or Component Type
    Miniature circuit-breaker
  • Network Frequency
    50/60 Hz
  • Mounting Mode
    Clip-on
  • Breaking Capacity
    10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2
  • [Ui] Rated Insulation Voltage
    500 V AC 50/60 Hz EN/IEC 60947-2
  • Local Signalling
    ON/OFF indication
  • Electrical Durability
    10000 cycles
  • Range
    Multi 9
  • Poles Description
    3P + N
  • [Ue] Rated Operational Voltage
    415 V AC 50/60 Hz between phases
  • Height
    3.19 in (81 mm)
  • Mechanical Durability
    20000 cycles
  • Number Of Protected Poles
    3
  • Trip Unit Technology
    Thermal-magnetic
  • Contact Position Indicator
    Yes
  • Depth
    3.07 in (78 mm)
  • Mounting Support
    DIN rail
  • Earth-Leakage Protection
    Separate block
  • Connections - Terminals
    Tunnel type terminal top or bottom) 0.00…0.02 in² (0.75…16 mm²) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (0.33…10 mm²) - flexible Tunnel type terminal top or bottom) 0.00…0.02 in² (0.33…10 mm²) - flexible with ferrule

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M9P22725 on Powermatic Associates is $837.00. Order now.
