MGN61525 Schneider Electric Industrial Automation Components

MGN61525 on Powermatic Associates
Schneider Electric

Part#:MGN61525

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

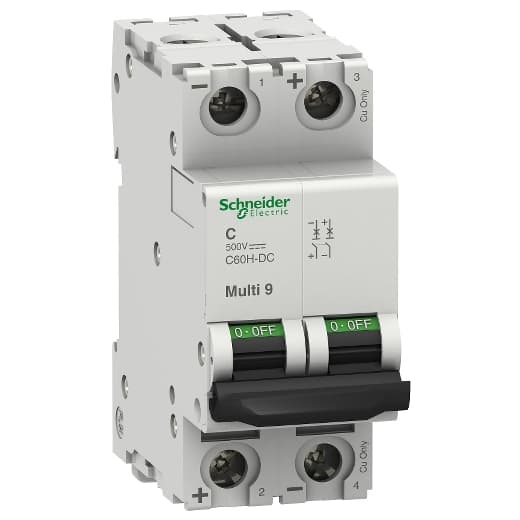

Schneider Electric - MGN61525

Product Details

  • Product Name
    Multi 9 C60H-DC
  • Suitability For Isolation
    Yes EN/IEC 60947-2
  • Magnetic Tripping Limit
    8.5 x In +/- 20 % AC
  • Product Or Component Type
    Miniature circuit-breaker
  • Local Signalling
    ON/OFF indication
  • Depth
    2.87 in (73 mm)
  • Device Short Name
    C60H-DC
  • Utilisation Category
    Category A EN/IEC 60947-2
  • [Uimp] Rated Impulse Withstand Voltage
    6 kVEN/IEC 60947-2
  • Line Rated Current
    5 A 77 °F (25 °C)
  • [Ui] Rated Insulation Voltage
    500 V DC EN/IEC 60947-2
  • Mechanical Durability
    20000 cycles
  • 9 Mm Pitches
    4
  • Number Of Protected Poles
    2
  • [Ue] Rated Operational Voltage
    12...500 V DC
  • Mounting Mode
    Clip-on
  • Color
    Gray
  • Poles Description
    2P
  • Curve Code
    C
  • Control Type
    Toggle
  • Earth-Leakage Protection
    Without
  • Provision For Padlocking
    Padlockable
  • Network Type
    DC
  • Range
    Multi 9
  • Contact Position Indicator
    Yes
  • Width
    1.42 in (36 mm)
  • Wire Stripping Length
    0.55 in (14 mm) top or bottom
  • Device Application
    Distribution
  • Limitation Class
    3 EN/IEC 60947-2
  • Trip Unit Technology
    Thermal-magnetic
  • Mounting Support
    DIN rail
  • Comb Busbar And Distribution Block Compatibility
    Top or bottom: standard
  • Height
    3.19 in (81 mm)
  • Locking Options Description
    In position O
  • Net Weight
    0.56 lb(US) (0.256 kg)
  • Tightening Torque
    22.13 lbf.in (2.5 N.m) top or bottom
  • Electrical Durability
    3000 cycles L/R = 2 ms 6000 cycles
  • Connections - Terminals
    Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 4) - rigid stranded Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 6) - flexible Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AW
  • [Ics] Rated Service Breaking Capacity
    4.5 kA 75 % GB 14048.2 - 500 V DC 7.5 kA 75 % GB 14048.2 - 440 V DC 15 kA 75 % GB 14048.2 - 220 V DC 15 kA 75 % EN/IEC 60947-2 - 220 V DC 7.5 kA 75 % EN/IEC 60947-2 - 440 V DC 4.5 kA 75 % EN/IEC 60947-2 - 500 V DC
  • Breaking Capacity
    20 kA Icu 220 V DC GB 14048.2 10 kA Icu 440 V DC GB 14048.2 6 kA Icu 500 V DC GB 14048.2 20 kA Icu 220 V DC EN/IEC 60947-2 10 kA Icu 440 V DC EN/IEC 60947-2 6 kA Icu 500 V DC EN/IEC 60947-2 5 kA AIR 12...500 V DC UL 1077

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MGN61525 on Powermatic Associates is $588.00. Order now.



Similar products from: Schneider Electric Industrial Automation Components

Manufacturer warranty

MGN61525 Schneider Electric

$588.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$588.00

$588.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery


Secure Payment Processing


Warranty


Responsive Customer Support

Got Questions? We've Got Answers!


Need more details?

Feel free to chat with us

Compare MGN61525 with other Industrial Automation Components products

Product Name

Suitability For Isolation

Magnetic Tripping Limit

Product Or Component Type

Local Signalling

Depth

Device Short Name

Utilisation Category

[Uimp] Rated Impulse With...

Line Rated Current

Selected product

MGN61525
Backordered
MGN61525
Schneider Electric

Schneider Electric - MGN61525

Product NameMulti 9 C60H-DC

Suitability For IsolationYes EN/IEC 60947-2

Magnetic Tripping Limit8.5 x In +/- 20 % AC

Product Or Component TypeMiniature circuit-breaker

Local SignallingON/OFF indication

Depth2.87 in (73 mm)

Device Short NameC60H-DC

Utilisation CategoryCategory A EN/IEC 60947-2

[Uimp] Rated Impulse Withstand Voltage6 kVEN/IEC 60947-2

Line Rated Current5 A 77 °F (25 °C)
