Part#:MJF36500

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

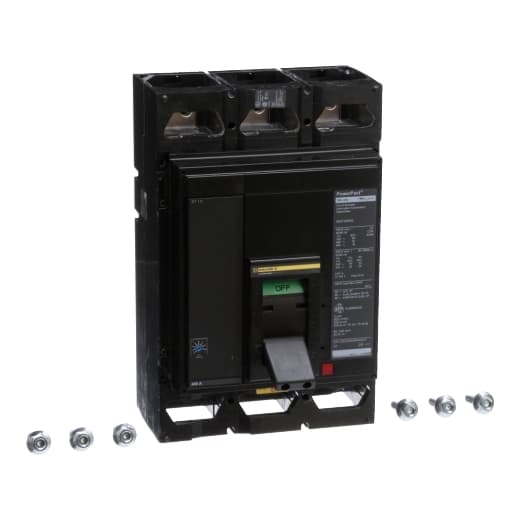

Schneider Electric - MJF36500

Product Details

  • Electrical Connection
    Busbar connection line Busbar connection load
  • Width
    0.32 in (8.06 mm)
  • Depth
    8.27 in (210 mm)
  • Continuous Current Rating
    80 %
  • Height
    12.86 in (326.6 mm)
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil)
  • Terminal Identifier
    AL800M23K
  • Number Of Poles
    3P
  • Magnetic Tripping Current
    1000…5000 A
  • Line Rated Current
    500 A
  • Product Or Component Type
    Circuit breaker
  • Breaking Capacity Code
    J

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
