MPZB22T2F65K Schneider Electric Industrial Automation Components

MPZB22T2F65K on Powermatic Associates
Schneider Electric

Part#:MPZB22T2F65K

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

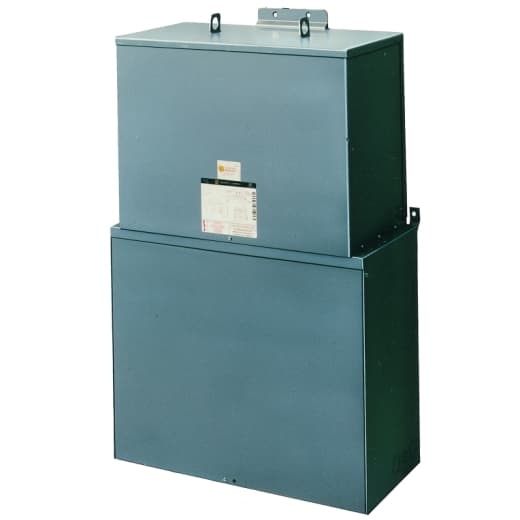

Schneider Electric - MPZB22T2F65K

Product Details

  • Enclosure Code
    CC
  • Interrupt Rating
    65 kA
  • Phase
    3 phase
  • Insulation Temperature
    365 °F (185 °C)
  • Certifications
    UL Listed
  • Product
    Sealed Transformer
  • Primary Voltage
    480 V
  • Temperature Rise
    115 °C
  • Full Capacity Taps
    2 5 % FCBN
  • Type
    Mini Power-Zone
  • Number Of Spaces Available
    24
  • Secondary Voltage
    208Y/120 V
  • Interior Type
    NQ Panelboard interior
  • Power Rating
    22.5 kVA
  • Winding Material
    Copper
  • Enclosure Type
    NEMA 3R hot-rolled steel
  • Number Of Circuits
    24
  • Circuit Breaker Type
    Secondary main breaker Primary main breaker Feeder breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MPZB22T2F65K on Powermatic Associates is $18,652.00. Order now.
