Part#:NF430L1

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

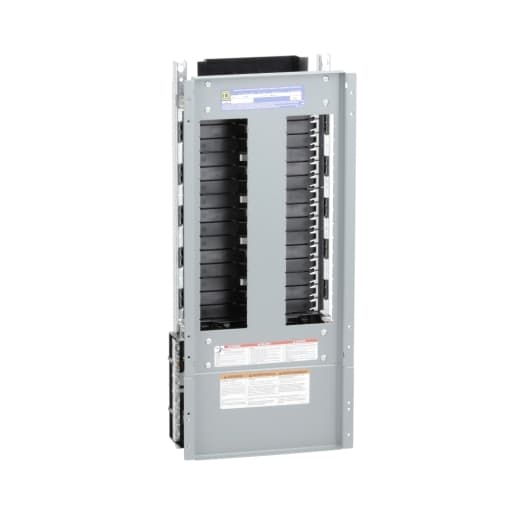

Square D by Schneider Electric NF430L1 is a panelboard designed for three-phase (3PH-4W) networks, with a rated voltage of 480Y/277Vac and a rated current of 125A. This panelboard interior accommodates up to 30 circuits within its 30 spaces, suitable for aluminium busbars. It is compatible with line and neutral aluminium lugs ranging from 6AWG to 2/0AWG, ensuring a broad range of connection possibilities for various electrical setups.

Product Details

  • Panelboard Type
    Main lugs
  • Number Of Phases
    3 phase
  • Number Of Spaces
    30
  • Voltage Rating
    600Y/347 V AC
  • Busbar Material
    Aluminium
  • Branch Circuit Breaker Type
    EDB/EDG/EDJ
  • [Iu] Rated Interrupted Current
    65 kA
  • Width
    10.44 in (265.18 mm)
  • Enclosure Nominal Width
    20 in (508.00 mm)
  • Height
    27 in (685.80 mm)
  • Line Rated Current
    125 A
  • Wiring Configuration
    4-wire
  • Enclosure Nominal Depth
    5.75 in (146.05 mm) NEMA 1 6.5 in (165.10 mm) NEMA 3R/5/12
  • Enclosure Nominal Height
    44 in (1117.60 mm) 32 in (812.80 mm)
  • Connections - Terminals
    Lug line AWG 6...AWG 2/0 aluminium/copper Lug neutral AWG 6...AWG 2/0 aluminium
  • Tightening Torque
    40.01…50.01 lbf.in (4.52…5.65 N.m) 0.02…0.10 in² (13.30…67.43 mm²) (AWG 6...AWG 2/0) 100.01 lbf.in (11.3 N.m) 0.02…0.10 in² (13.30…67.43 mm²) (AWG 6...AWG 2/0) 274.99 lbf.in (31.07 N.m) 0.02…0.27 in² (13.30…177.3 mm²) (AWG 6...350 kcmil) 27

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NF430L1 on Powermatic Associates is $1,766.00. Order now.
