NF430L4 Schneider Electric Industrial Automation Components

NF430L4 on Powermatic Associates
Schneider Electric

Part#:NF430L4

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

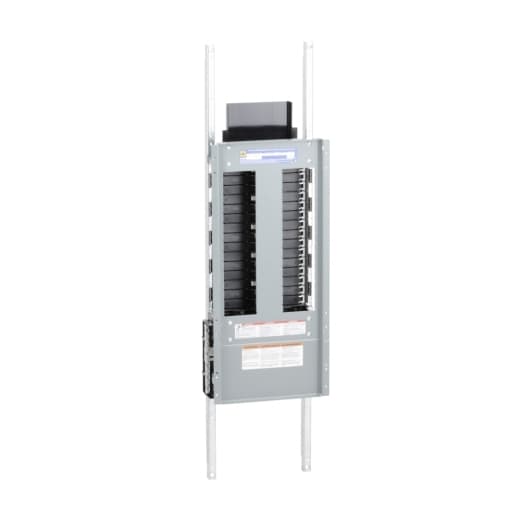

Square D by Schneider Electric NF430L4 is a panelboard designed for three-phase (3PH-4W) networks, featuring a panelboard interior with a rated current of 400A and a rated voltage of 480Y/277Vac. It accommodates 30 circuits within a 30-space configuration. The construction includes aluminium busbars and is compatible with cross-sections ranging from 1/0AWG to 750kcmil for both line and neutral aluminium lugs.

Product Details

  • Tightening Torque
    274.99…300.04 lbf.in (31.07…33.90 N.m) 0.08…0.59 in² (53.48…380 mm²) (AWG 1/0...750 kcmil) 274.99…300.04 lbf.in (31.07…33.90 N.m) 0.08…0.27 in² (53.48…177.3 mm²) (AWG 1/0...350 kcmil) 549.98 lbf.in (62.14 N.m) 0.08…0.59 in² (53.48…380 mm²) (AWG
  • Connections - Terminals
    Lug line AWG 1/0...750 kcmil aluminium Lug neutral AWG 1/0...750 kcmil aluminium
  • Enclosure Nominal Height
    50 in (1270.00 mm) 62 in (1574.80 mm)
  • Enclosure Nominal Depth
    5.75 in (146.05 mm) NEMA 1 6.5 in (165.10 mm) NEMA 3R/5/12
  • Width
    10.44 in (265.18 mm)
  • Wiring Configuration
    4-wire
  • Number Of Phases
    3 phase
  • Voltage Rating
    600Y/347 V AC
  • Height
    46 in (1168.40 mm)
  • Enclosure Nominal Width
    20 in (508.00 mm)
  • [Iu] Rated Interrupted Current
    65 kA
  • Line Rated Current
    400 A
  • Number Of Spaces
    30
  • Busbar Material
    Aluminium
  • Branch Circuit Breaker Type
    EDB/EDG/EDJ
  • Panelboard Type
    Main lugs

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NF430L4 on Powermatic Associates is $2,466.00. Order now.
