NF442L2TVS412 Schneider Electric Industrial Automation Components

NF442L2TVS412 on Powermatic Associates
Schneider Electric

Part#:NF442L2TVS412

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

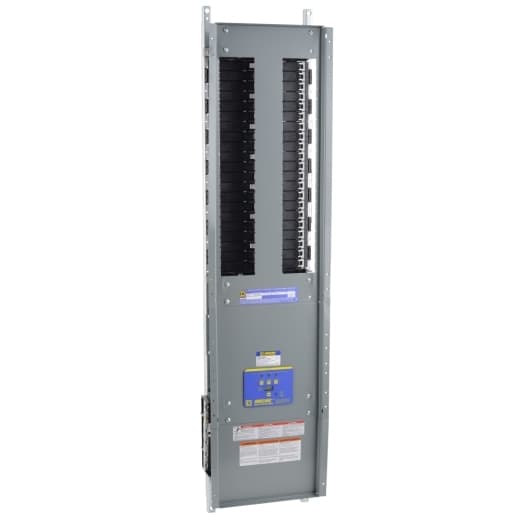

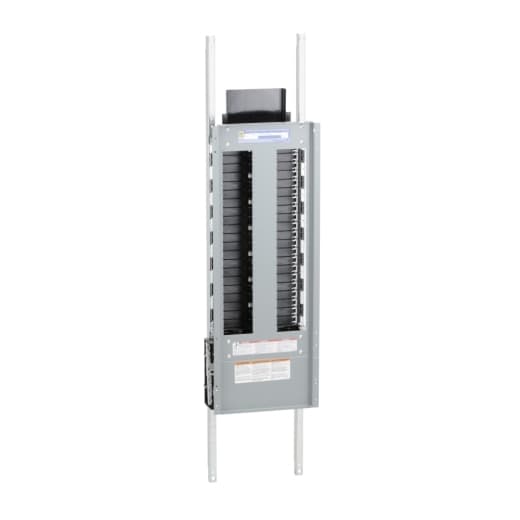

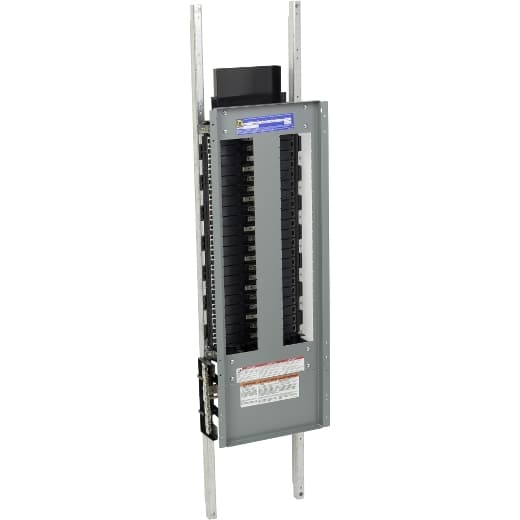

Square D by Schneider Electric NF442L2TVS412 is a panelboard designed for three-phase (3PH-4W) networks, featuring a panelboard interior with TVSS. It has a rated current of 250A and operates at a rated voltage of 480Y/277Vac. This panelboard accommodates 42 circuits within its 42-spaces dimensions, ensuring compatibility with a wide range of applications. It is constructed with aluminium busbars and includes aluminium lugs for both line and neutral connections, supporting cross-sections from 6AWG to 350kcmil.

Product Details

  • Tightening Torque
    40.01…50.01 lbf.in (4.52…5.65 N.m) 0.02…0.10 in² (13.30…67.43 mm²) (AWG 6...AWG 2/0) 100.01 lbf.in (11.3 N.m) 0.02…0.10 in² (13.30…67.43 mm²) (AWG 6...AWG 2/0) 274.99 lbf.in (31.07 N.m) 0.02…0.27 in² (13.30…177.3 mm²) (AWG 6...350 kcmil) 27
  • Surge Capacity
    60 kA between phase and neutral 60 kA between phase and ground 100 kA between neutral and ground
  • Connections - Terminals
    Lug line AWG 6...350 kcmil aluminium Lug neutral AWG 6...350 kcmil aluminium
  • Enclosure Nominal Depth
    5.75 in (146.05 mm) NEMA 1 6.5 in (165.10 mm) NEMA 3R/5/12
  • Width
    10.44 in (265.18 mm)
  • Line Rated Current
    250 A
  • Height
    52 in (1320.80 mm)
  • Enclosure Nominal Width
    20 in (508.00 mm)
  • Voltage Rating
    600Y/347 V AC
  • Wiring Configuration
    4-wire
  • Branch Circuit Breaker Type
    EDB/EDG/EDJ
  • Panelboard Type
    Main lugs
  • Number Of Spaces
    42
  • Number Of Phases
    3 phase
  • Accessory Device
    Surge protection device, 120 kA 400 V, 150 V
  • [Iu] Rated Interrupted Current
    65 kA
  • Busbar Material
    Aluminium

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NF442L2TVS412 on Powermatic Associates is $25,931.00. Order now.
