NSYCRN64200T Schneider Electric Industrial Automation Components

NSYCRN64200T on Powermatic Associates
Schneider Electric

Part#:NSYCRN64200T

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

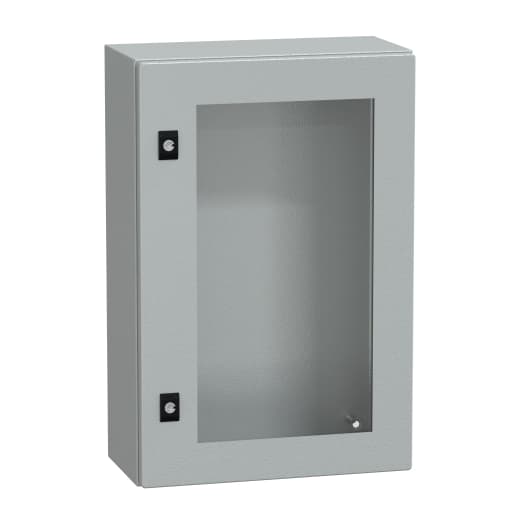

Schneider Electric - NSYCRN64200T

Product Details

  • Enclosure Nominal Width
    15.75 in (400 mm)
  • Accessibility For Operation
    Front
  • Application
    Multi-purpose
  • Door Opening Side
    Reversible 120 °)
  • Standards
    IEC 62208
  • Range
    Spacial
  • Mounting Plate Description
    Without mounting plate
  • Color
    Gray RAL 7035)
  • Enclosure Nominal Depth
    7.87 in (200 mm)
  • Surface Finish
    epoxy-polyester powder
  • Category
    Compact enclosure
  • Lock Type
    3 mm double-bar lock
  • Product Name
    Spacial CRN
  • Door Type
    Glass
  • Enclosure Nominal Height
    23.62 in (600 mm)
  • Type Of Gland Plate
    Standard
  • Installation Accessory Type
    Wall-mounting
  • Number Of Doors
    Front face 1
  • Net Weight
    21.87 lb(US) (9.922 kg)
  • Material
    Body steel Door steel and security glass
  • Removable Parts
    Door by hinges Cable gland plate by screws
  • Body Type
    Sides made from a single folded section Back welded with double profile forming a protected sealed area
  • Product Certifications
    CUL UL DNV-GL
  • Device Composition
    1 body 1 cable gland plate 1 door 1 lock

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYCRN64200T on Powermatic Associates is $240.51. Order now.
