NSYS3D4625 Schneider Electric Industrial Automation Components

NSYS3D4625 on Powermatic Associates
Schneider Electric

Part#:NSYS3D4625

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

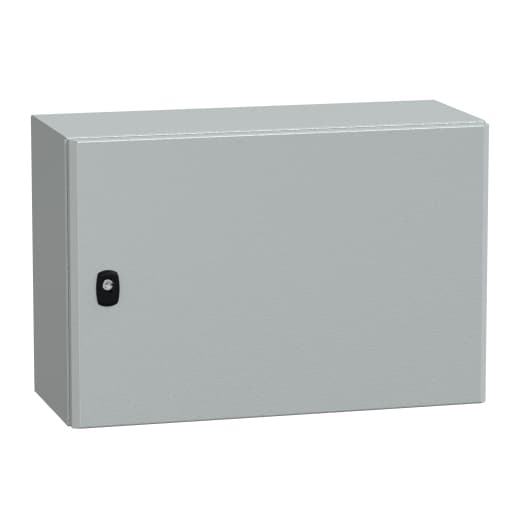

Schneider Electric - NSYS3D4625

Product Details

  • Application
    Multi-purpose
  • Category
    Compact enclosure
  • Color
    Gray RAL 7035)
  • Mounting Plate Description
    Without mounting plate
  • Accessibility For Operation
    Front
  • Product Name
    Spacial S3D
  • Number Of Doors
    Front face 1
  • Enclosure Nominal Height
    15.75 in (400 mm)
  • Door Type
    Solid
  • Lock Type
    3 points lock, 3 mm double-bar
  • Type Of Gland Plate
    Standard
  • Material
    steel
  • Enclosure Nominal Width
    23.62 in (600 mm)
  • Surface Finish
    epoxy-polyester powder
  • Range
    Spacial
  • Door Opening Side
    Reversible 120 °)
  • Standards
    IEC 62208
  • Installation Accessory Type
    Wall-mounting
  • Enclosure Nominal Depth
    9.84 in (250 mm)
  • Net Weight
    26.46 lb(US) (12 kg)
  • Removable Parts
    Door by hinges Cable gland plate by screws
  • Body Type
    Single piece body Gutter-shaped front rail double sheet thickness
  • Device Composition
    1 body 1 door 1 lock 1 cable gland plate
  • Product Certifications
    BV LR DNV CUL GL UL

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYS3D4625 on Powermatic Associates is $151.37. Order now.
