NSYS3X8625H Schneider Electric Industrial Automation Components

NSYS3X8625H on Powermatic Associates
Schneider Electric

Part#:NSYS3X8625H

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

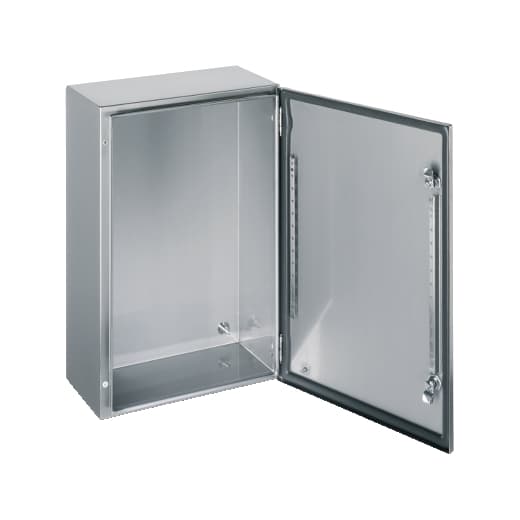

Schneider Electric - NSYS3X8625H

Product Details

  • Nominal Height
    31.50 in (800 mm)
  • Category
    Compact enclosure
  • Number Of Doors
    Front face 1
  • Removable Parts
    Door by hinges
  • Nominal Width
    23.62 in (600 mm)
  • Mounting Plate Description
    Without mounting plate
  • Enclosure Type
    Multi-purpose
  • Door Type
    Solid
  • Type Of Gland Plate
    Without gland plate
  • Product Name
    Spacial S3X
  • Door Opening Side
    Reversible 120 °)
  • Product Installation
    Wall-mounting
  • Range
    Spacial
  • Accessibility For Operation
    Front
  • Nominal Depth
    9.84 in (250 mm)
  • Lock Type
    2 points lock, 3 mm double-bar
  • Net Weight
    49.78 lb(US) (22.58 kg)
  • Surface Finish
    Body and door Scotch-Brite® brushed Lock chromium plated
  • Body Type
    Single piece body, cross-shaped structure Gutter shaped front rail
  • Material
    Lock zamak Hinge stainless steel Body and door stainless steel 316L
  • Device Composition
    1 body 1 door 2 lock door 2 perforated vertical profile drilled door

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYS3X8625H on Powermatic Associates is $1,746.43. Order now.
