NSYSBM202012 Schneider Electric Industrial Automation Components

NSYSBM202012 on Powermatic Associates
Schneider Electric

Part#:NSYSBM202012

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

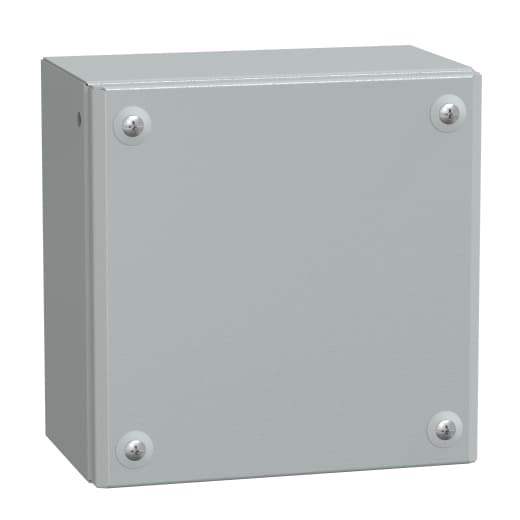

Schneider Electric - NSYSBM202012

Product Details

  • Standards
    IEC 62208
  • Operating Temperature
    -31…176 °F (-35…80 °C)
  • Enclosure Nominal Depth
    4.72 in (120 mm)
  • Removable Parts
    Cover by captive screws
  • Enclosure Nominal Width
    7.87 in (200 mm)
  • Enclosure Mounting
    Wall mounted
  • Net Weight
    4.18 lb(US) (1.894 kg)
  • Device Application
    Multi-purpose
  • Material
    sheet steel
  • Enclosure Type
    Flat face box
  • Type Of Front Cover
    Plain door
  • Category
    Industrial box
  • Surface Finish
    Polyester powder
  • IP Degree Of Protection
    IP66 IEC 60529
  • Product Name
    Spacial SBM
  • Range
    Spacial
  • Body Type
    Single piece body folded and welded
  • IK Degree Of Protection
    IK10 IEC 62262
  • Enclosure Nominal Height
    7.87 in (200 mm)
  • Lock Type
    Captive screw PZ2 outside sealed area
  • Device Short Name
    SBM
  • Ambient Air Temperature For Storage
    -31…140 °F (-35…60 °C)
  • Cover Fixing
    Half turn metal screw
  • Color
    Gray RAL 7035)
  • Device Composition
    4 cover screw 1 cover 1 body
  • Product Certifications
    LR DNV-GL UL BV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYSBM202012 on Powermatic Associates is $53.82. Order now.
