NSYTBP241912HT Schneider Electric Industrial Automation Components

NSYTBP241912HT on Powermatic Associates
Schneider Electric

Part#:NSYTBP241912HT

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

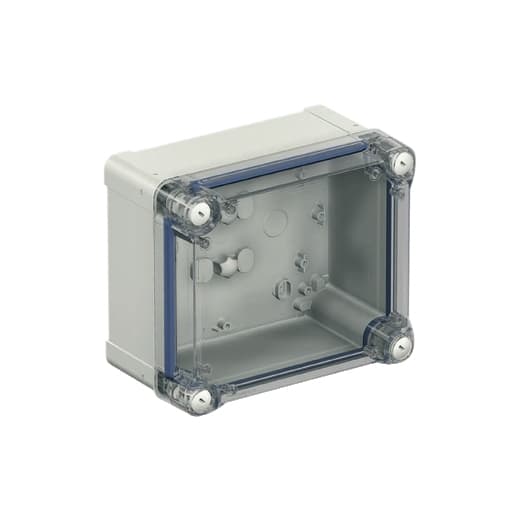

Schneider Electric - NSYTBP241912HT

Product Details

  • Height
    9.49 in (241 mm)
  • Type Of Front Cover
    High transparent cover
  • Mounting Location
    Outdoor
  • Product Name
    Thalassa TBP
  • Enclosure Mounting
    Wall mounted
  • Device Application
    Multi-purpose
  • Internal Height
    8.86 in (225 mm)
  • Material
    polycarbonate
  • Electrical Insulation Class
    Class II
  • Range
    Thalassa
  • Internal Depth
    4.72 in (120 mm)
  • Removable Parts
    Cover by captive screws
  • Category
    Industrial box
  • Lock Type
    Captive screw flat outside sealed area
  • Width
    7.64 in (194 mm)
  • Internal Width
    6.89 in (175 mm)
  • Body Type
    One piece moulded
  • Depth
    5.00 in (127 mm)
  • Cover Fixing
    Plastic screws
  • Net Weight
    1.81 lb(US) (0.82 kg)
  • Standards
    UL 508 A IEC 62208
  • Color
    Gray RAL 7035) Transparent
  • Product Certifications
    TÜV UL
  • Device Composition
    1 body 1 cover 4 cover screw

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYTBP241912HT on Powermatic Associates is $70.86. Order now.
