PGL36080U33A Schneider Electric Industrial Automation Components

PGL36080U33A on Powermatic Associates
Schneider Electric

Part#:PGL36080U33A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

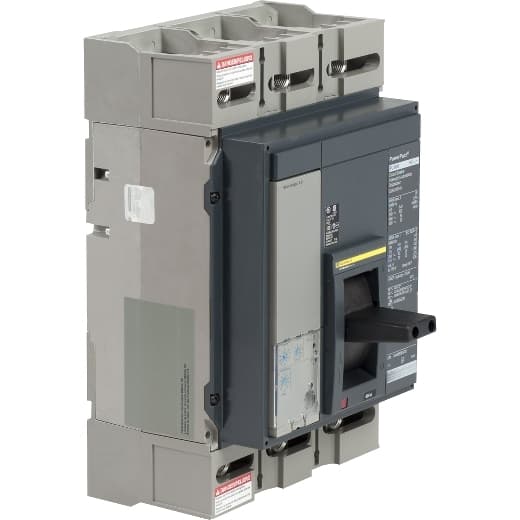

Square D by Schneider Electric PGL36080U33A is a Molded Case Circuit Breaker (MCCB) designed for mounting on a plate. It features a standard model configuration with an 80% rated current of 800A and utilizes lugs for both load and line side connections. This component is part of the PowerPact PGL sub-range and operates at a rated voltage of 600V AC across 3 poles. It offers a comprehensive suite of protection functions including Long-time (L), Short-time with fixed time delay (S), Instantaneous (I), and Ground fault (G) protection. The trip current rating is set at 800 AT with a frame current rating of 1200 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at both 480Y/277Vac and 480Vac, and 18kA at both 600Y/347Vac and 600Vac. All three poles are protected, and the trip unit type is an ET6.0A (LSIG) Electronic, ensuring precise operation under fault conditions.

Product Details

  • Height
    12.86 in (326.64 mm)
  • Line Rated Current
    800 A
  • Product Or Component Type
    Circuit breaker
  • Depth
    8.05 in (204.47 mm)
  • Device Short Name
    A
  • Number Of Poles
    3P
  • Continuous Current Rating
    80 %
  • Width
    8.27 in (210.06 mm)
  • Breaking Capacity Code
    G
  • Electrical Connection
    Lugs load Lugs line
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PGL36080U33A on Powermatic Associates is $15,032.00. Order now.
