PGL36100CU33AMO Schneider Electric Industrial Automation Components

PGL36100CU33AMO on Powermatic Associates
Schneider Electric

Part#:PGL36100CU33AMO

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

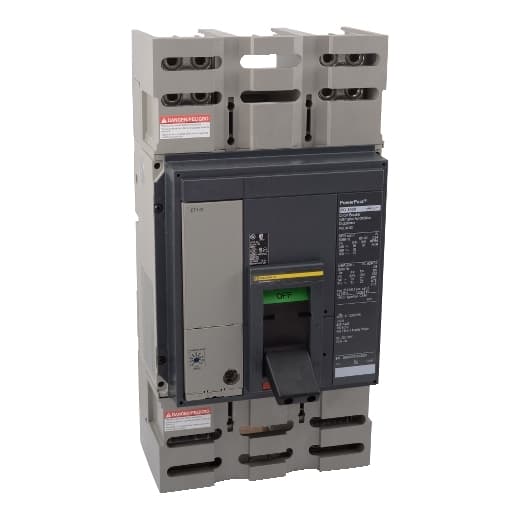

Schneider Electric - PGL36100CU33AMO

Product Details

  • Certifications
    IEC UL Listed CSA
  • Breaking Capacity
    65 kA 240 V AC 35 kA 480 V AC 18 kA 600 V AC
  • Electrical Connection
    Lugs load Lugs line
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)
  • Depth
    8.05 in (204.47 mm)
  • Width
    8.27 in (210.06 mm)
  • Height
    16.16 in (410.46 mm)
  • Circuit Breaker Rating Code
    G
  • Poles Description
    3P
  • Mounting Mode
    Unit mount
  • Module Type
    P-Frame
  • Rated Operatioal Voltage
    600 V AC
  • Mounting Location
    Bolt-on
  • Continuous Current Rating
    100 %
  • Trip Unit Technology
    Electronic, standard, Micrologic 5.0, LSI
  • Current Sensor Rating Range
    1000 A
  • Device Short Name
    A
  • AWG Gauge
    AWG 3/0...500 kcmil aluminium/copper)4
  • Accessory Type
    Motor mechanism 24...30 V DC
  • Rated Current
    1000 A
  • Range
    PowerPact P
  • Product Or Component Type
    Circuit breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PGL36100CU33AMO on Powermatic Associates is $35,630.00. Order now.
