PGL36100U31A Schneider Electric Industrial Automation Components

PGL36100U31A on Powermatic Associates
Schneider Electric

Part#:PGL36100U31A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

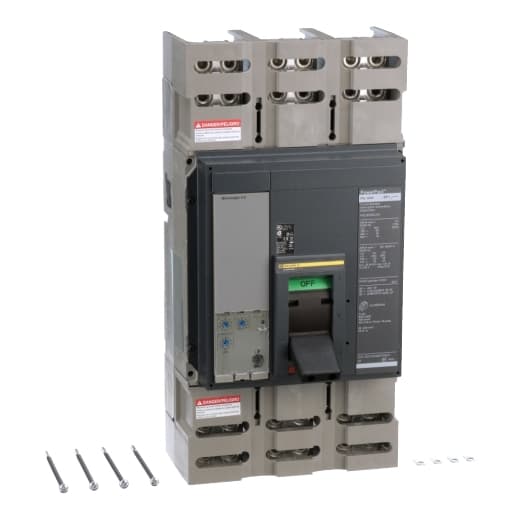

Square D by Schneider Electric PGL36100U31A is a Molded Case Circuit Breaker (MCCB) designed for mounting on a plate. This standard model, rated at 80%, supports a rated current of 1000A and operates with a connection type of lugs on both load and line sides. It falls under the PowerPact PGL sub-range and is designed for a rated voltage (AC) of 600 V across 3 poles. The PGL36100U31A features protection functions including Long-time (L) and Instantaneous (I) protection, with a trip current rating of 1000 AT and a frame current rating of 1200 AF. Its short circuit breaking rating is specified as 65kA at 240Vac, 35kA at both 480Y/277Vac and 480Vac, and 18kA at both 600Y/347Vac and 600Vac, covering all 3 protected poles. The trip unit type is an ET3.0A (LI) Electronic, ensuring precise operation under specified conditions.

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)
  • Continuous Current Rating
    80 %
  • Height
    16.16 in (410.46 mm)
  • Breaking Capacity Code
    G
  • Device Short Name
    A
  • Width
    8.27 in (210.06 mm)
  • Depth
    8.05 in (204.47 mm)
  • Number Of Poles
    3P
  • Line Rated Current
    1000 A
  • Product Or Component Type
    Circuit breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PGL36100U31A on Powermatic Associates is $19,836.00. Order now.
