PJF36060CU31A Schneider Electric Electronic Components

PJF36060CU31A on Powermatic Associates
Schneider Electric

Part#:PJF36060CU31A

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

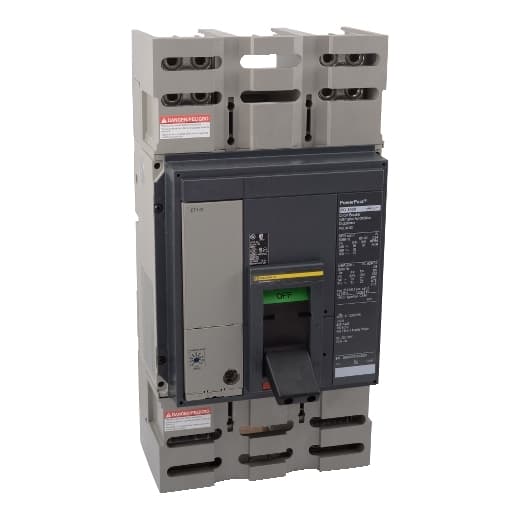

MOLDED CASE CIRCUIT BREAKER 600V 600A

Product Details

  • Rated Current
    600 A
  • Product Or Component Type
    Circuit breaker
  • Module Type
    P-Frame
  • Poles Description
    3P
  • Circuit Breaker Rating Code
    J
  • Device Short Name
    A
  • Continuous Current Rating
    100 %
  • Rated Operatioal Voltage
    600 V AC
  • Trip Unit Technology
    Electronic, standard, Micrologic 3.0, LI
  • Height
    12.86 in (326.64 mm)
  • Range
    PowerPact P
  • Mounting Location
    Busbar
  • Width
    8.27 in (210.06 mm)
  • Current Sensor Rating Range
    600 A
  • Mounting Mode
    Unit mount
  • Depth
    8.05 in (204.47 mm)
  • Electrical Connection
    Busbar connection line Busbar connection load
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)
  • Certifications
    CSA UL Listed IEC
  • Breaking Capacity
    100 kA 240 V AC 65 kA 480 V AC 25 kA 600 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PJF36060CU31A on Powermatic Associates is $22,868.00. Order now.

PJF36060CU31A Related Documents

Catalog-1631031041440.pdfProduct Datasheet-1631031041432.pdf
