Part#:PJL36040U31A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

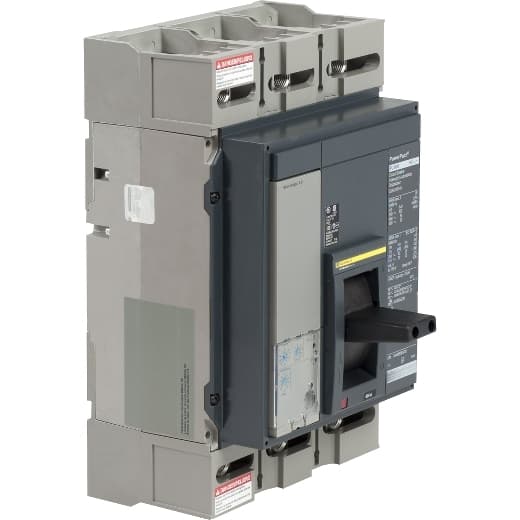

Square D by Schneider Electric PJL36040U31A is a Molded Case Circuit Breaker (MCCB) designed for mounting on a plate. It features a rated current of 600A with lugs for both load and line side connections. This breaker falls under the PowerPact PJL sub-range and operates at a rated voltage of 600V AC. It is a 3 Pole device equipped with L (Long-time) and I (Instantaneous) protection functions. The trip current rating is set at 600 AT, with a frame current rating of 1200 AF. It has a short circuit breaking rating of 100kA at 240Vac, 65kA at both 480Y/277Vac and 480Vac, and 25kA at both 600Y/347Vac and 600Vac. All three poles are protected, and it utilizes an ET1.01 (LI) Electronic trip unit type.

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)
  • Breaking Capacity Code
    J
  • Depth
    8.05 in (204.47 mm)
  • Continuous Current Rating
    80 %
  • Width
    8.27 in (210.06 mm)
  • Height
    12.86 in (326.64 mm)
  • Line Rated Current
    400 A
  • Number Of Poles
    3P
  • Product Or Component Type
    Circuit breaker
  • Device Short Name
    A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PJL36040U31A on Powermatic Associates is $15,570.00. Order now.
