PJL36025CU63AE1 Schneider Electric Electronic Components

PJL36025CU63AE1 on Powermatic Associates
Schneider Electric

Part#:PJL36025CU63AE1

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

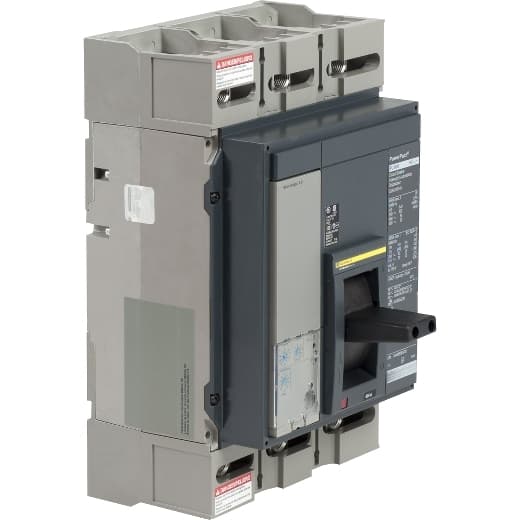

MOLDED CASE CIRCUIT BREAKER 600V 250A

Product Details

  • Breaking Capacity Code
    J
  • Line Rated Current
    250 A
  • Product Or Component Type
    Circuit breaker
  • Width
    8.27 in (210.06 mm)
  • Continuous Current Rating
    100 %
  • Device Short Name
    A
  • Depth
    8.05 in (204.47 mm)
  • Communicaton Interface
    Modbus
  • Height
    12.86 in (326.64 mm)
  • Number Of Poles
    3P
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
