Schneider Electric

Part#:PJL36000S10SA

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

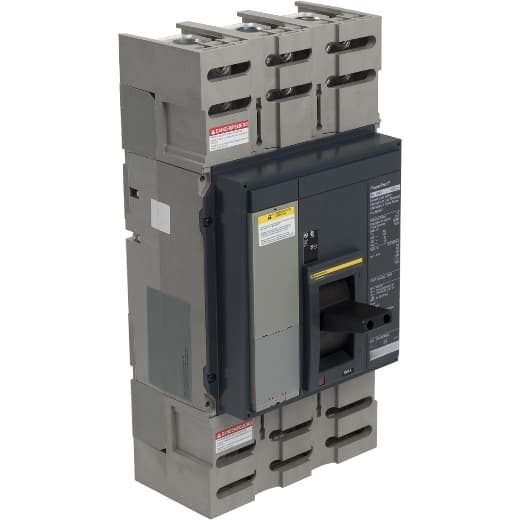

AUTOMATIC MOLDED CASE SWITCH 600V 1000A

Product Details

  • Accessory Type
    Shunt trip 110...130 V AC
  • Mounting Location
    Bolt-on
  • Rated Current
    1000 A
  • Range
    PowerPact P
  • Mounting Mode
    Unit mount
  • Width
    8.27 in (210.06 mm)
  • Poles Description
    3P
  • AWG Gauge
    AWG 3/0...500 kcmil aluminium/copper)4
  • Module Type
    P-Frame
  • Circuit Breaker Rating Code
    J
  • Product Or Component Type
    Automatic switch
  • Current Sensor Rating Range
    1000 A
  • Rated Operatioal Voltage
    600 V AC
  • Height
    16.16 in (410.46 mm)
  • Trip Unit Technology
    Magnetic
  • Continuous Current Rating
    100 %
  • Depth
    8.05 in (204.47 mm)
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)
  • Electrical Connection
    Lugs load Lugs line
  • Breaking Capacity
    100 kA 240 V AC 65 kA 480 V AC 25 kA 600 V AC
  • Certifications
    IEC UL Listed CSA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PJL36000S10SA Related Documents

Catalog-1631030262102.pdfProduct Datasheet-1631030262105.pdf
