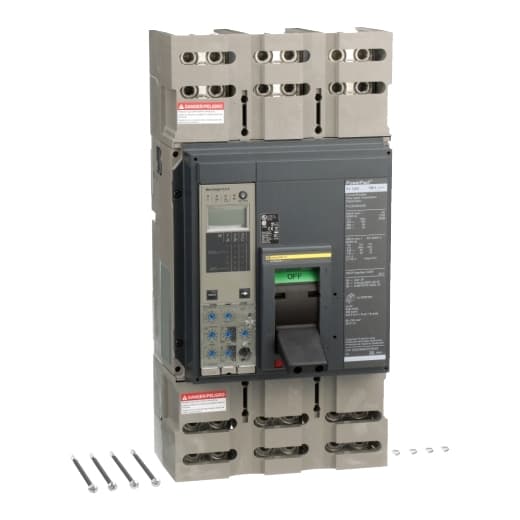

PJL36120U44A Schneider Electric Industrial Automation Components

PJL36120U44A on Powermatic Associates
Schneider Electric

Part#:PJL36120U44A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Turck PJL36120U44A is a sensor designed for pressure measurement, belonging to the PK series with a pico body style and a diameter of 16mm. It features instrumentation programmable relative pressure sensor/switch capabilities and operates within an ambient air temperature range of -10°C to +50°C. This model is pre-equipped with a 4-pin M8 Picofast male metal connector and a 1/8" NPT threaded male process port, ensuring a secure connection. It offers a degree of protection rated at IP65, making it suitable for various environments. The supply voltage required for operation is 10.8-30Vdc, with 12Vdc and 24Vdc as nominal values. Its cylindrical body is constructed from aluminium and ABS housing, with a stainless steel 1.4305 / 303 pressure connection for durability. The sensor can measure pressure from 0 to +10bar (0 to +145psig) and fluid medium temperature from 0°C to 50°C. It features a maximum switching frequency of 400Hz, two digital outputs (10.8-30Vdc; PNP), and offers programmable NO (Normally Open) or NC (Normally Closed) operating modes. Protection functions include short-circuit (pulsed) with a response time of 2.5ms / 0.0025 s. The control circuit rated current is 250mA / 0.25 A, and the current consumption is 35mA.

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)
  • Width
    8.27 in (210.06 mm)
  • Height
    16.16 in (410.46 mm)
  • Depth
    8.05 in (204.47 mm)
  • Product Or Component Type
    Circuit breaker
  • Continuous Current Rating
    80 %
  • Number Of Poles
    3P
  • Breaking Capacity Code
    J
  • Line Rated Current
    1200 A
  • Device Short Name
    A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PJL36120U44A on Powermatic Associates is $25,256.00. Order now.
