PJP36120U31E Schneider Electric Industrial Automation Components

PJP36120U31E on Powermatic Associates
Schneider Electric

Part#:PJP36120U31E

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

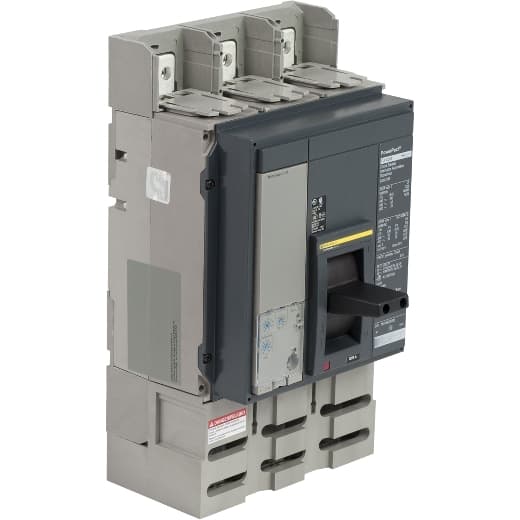

Schneider Electric - PJP36120U31E

Product Details

  • Line Rated Current
    1200 A
  • Height
    16.16 in (410.46 mm)
  • Number Of Poles
    3P
  • Depth
    8.05 in (204.47 mm)
  • Width
    8.27 in (210.06 mm)
  • Device Short Name
    E
  • Continuous Current Rating
    80 %
  • Product Or Component Type
    Circuit breaker
  • Breaking Capacity Code
    J
  • Electrical Connection
    Lugs line Terminal nut load
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PJP36120U31E on Powermatic Associates is $20,036.00. Order now.
