PK15GTA6 Schneider Electric Industrial Automation Components

PK15GTA6 on Powermatic Associates
Schneider Electric

Part#:PK15GTA6

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

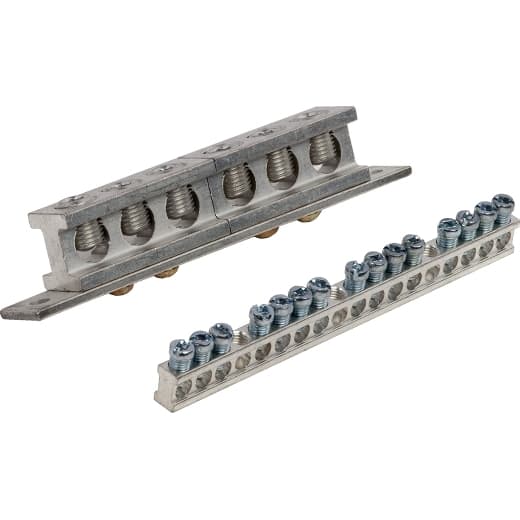

Square D by Schneider Electric PK15GTA6 is a grounding part designed to serve as a ground bar. It comes with options to accommodate various installation requirements.

Product Details

  • Height
    0.437 in (11.10 mm)
  • Device Mounting
    Direct mounting back of enclosure
  • Provided Equipment
    2 screw
  • Product Type
    Bar
  • Product Line
    QO
  • Depth
    0.312 in (7.92 mm)
  • Number Of Connectors
    21
  • Bar Length
    5.87 in (149 mm) 5.87 in (149 mm)
  • Maximum Length Of Segment
    3.15 in (80 mm) 5.24 in (133 mm)
  • Wire Size
    AWG 14...AWG 4 copper AWG 12...AWG 4 aluminium AWG 6...AWG 3/0 aluminium/copper
  • Tightening Torque
    30 lb.in 20 lb.in, AWG 14...AWG 10, copper 20 lb.in, AWG 12...AWG 10, aluminium 35 lb.in, AWG 6...AWG 4 25 lb.in, AWG 8 25 lb.in, AWG 14...AWG 12, copper 25 lb.in, AWG 12...AWG 10, aluminium

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PK15GTA6 on Powermatic Associates is $53.00. Order now.

PK15GTA6 Related Documents

Product Datasheet-1631030641380.pdfCatalog-1631030641382.pdfInstruction Sheet-1631030641378.pdf
