QC12L200S Schneider Electric Electrical Load Centers

QC12L200S on Powermatic Associates
Schneider Electric

Part#:QC12L200S

Manufacturer:Schneider Electric

Category:Electrical Load Centers

Product Lifecycle:Active

Product description

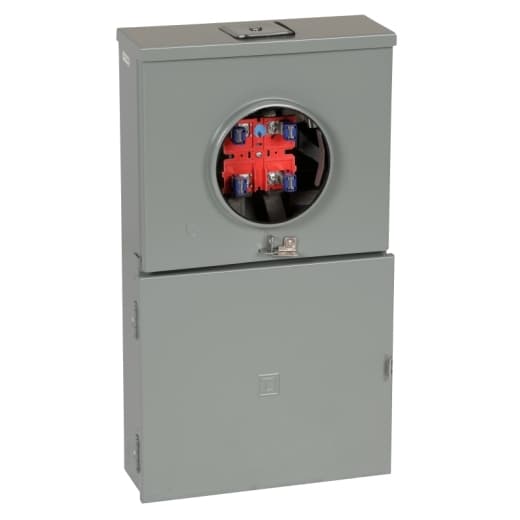

Square D by Schneider Electric QC12L200S is a meter center main unit designed for surface mounting. It features a single ringless meter socket and does not include a bypass. This unit is rated for a current of 200A and offers connection via lugs for both ground and line. The dimensions of the QC12L200S are H1045mm x W477mm x D137mm (H41.16" x W18.76" x D5.41"). It is compatible with a single-phase (1PH) network and supports a cross-section range of 6AWG to 350kcmil for aluminium/copper lugs and 8AWG to 2/0AWG for aluminium/copper lugs. Additionally, it has a short circuit breaking rating of 22kA.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

QC12L200S Schneider Electric

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...
