QO342MQ225 Schneider Electric Industrial Automation Components

QO342MQ225 on Powermatic Associates
Schneider Electric

Part#:QO342MQ225

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

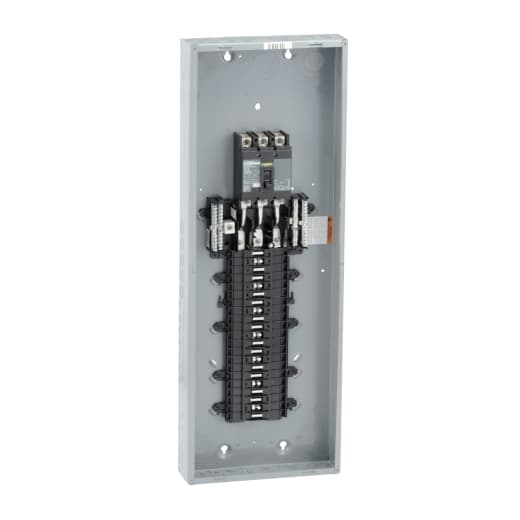

Square D by Schneider Electric QO342MQ225 is a load center designed for three-phase (3PH-3W/4W) networks with a rated voltage of 120Vac/240Vac. It has a rated current of 225A and features a connection type utilizing lugs. The dimensions of this load center are H1000mm x W362mm (H39.37" x W14.25"), providing 42 spaces for single pole circuits. It is constructed from welded sheet steel for the enclosure and tin-plated copper for the busbar, ensuring compatibility with 4AWG to 300kcmil aluminium and copper lugs. This load center is designed with a degree of protection classified as NEMA 1 and has a short circuit breaking rating of 25kA.

Product Details

  • Cover Type
    Order separately
  • Number Of Phases
    3 phase
  • Width
    14.25 in (362 mm)
  • Load Center Type
    Main breaker
  • Electrical Connection
    Lugs
  • Maximum Number Of Single Pole Circuits
    42
  • Busbar Material
    Tin plated copper busbar
  • Max Short Circuit Current Rating
    25 kA
  • Product Type
    Load Center
  • Ground Bar
    Grounding bar (ordered separately)
  • Marketing Trade Name
    QO
  • Wire Size
    AWG 4...300 kcmil aluminium/copper
  • Tightening Torque
    Cover 20 lb.in
  • Rated Current
    225 A
  • Number Of Spaces
    42
  • Maximum Number Of Tandem Breakers
    0
  • Box Number
    12
  • Surface Finish
    Baked enamel Gray
  • Enclosure Material
    Welded sheet steel
  • Height
    39.37 in (1000 mm)
  • Wiring Configuration
    3-wire 4-wire
  • Voltage Rating
    208Y/120 V AC 240/120 V delta AC 240 V delta AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO342MQ225 on Powermatic Associates is $2,027.00. Order now.
