Part#:QOB120VH

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

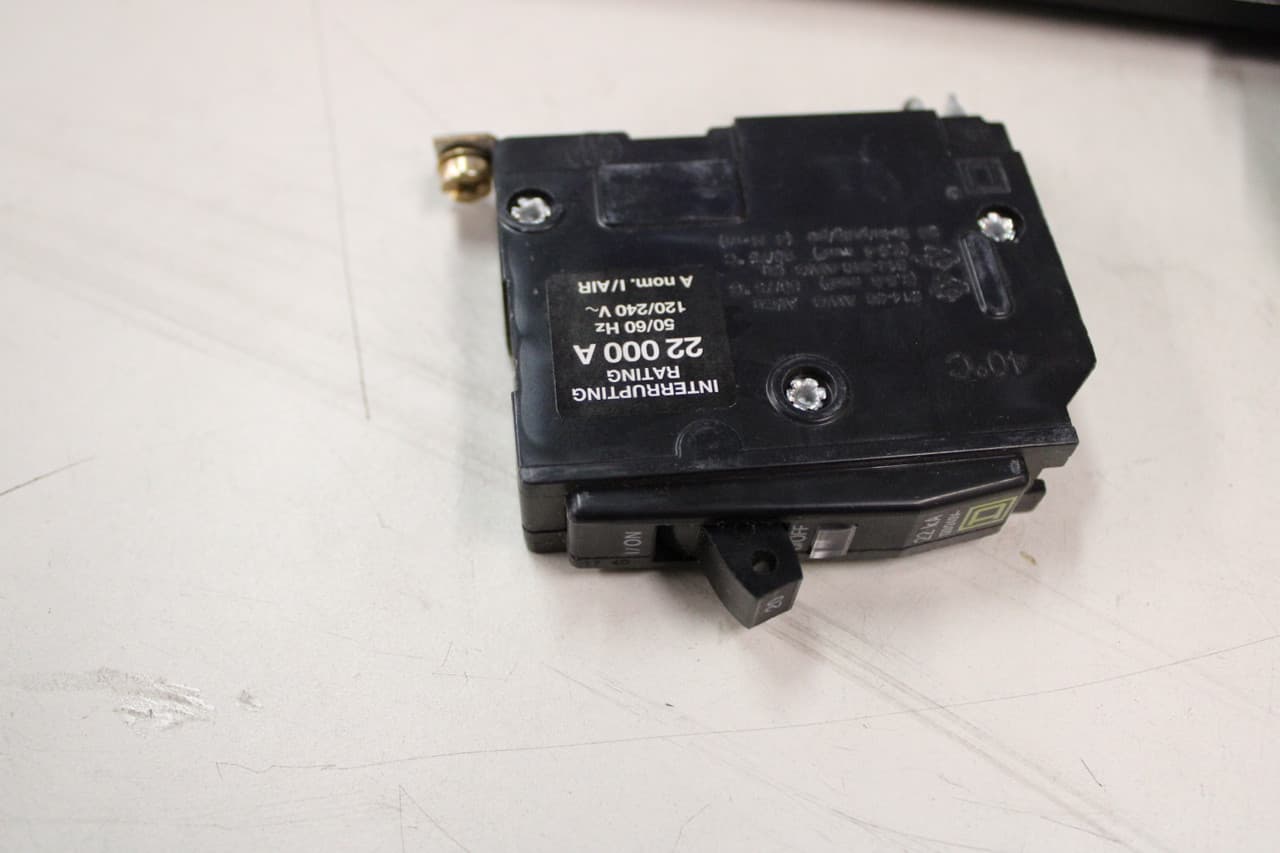

Square D by Schneider Electric QOB120VH is a miniature circuit breaker (MCB) designed for bolt-on mounting. It features a rated current of 20A and accommodates a bolt-on connection type. This MCB operates at a rated voltage of 120V to 240V and is compatible with a cross-section of 14-8AWG for one aluminum or copper cable. It is a single-pole device with a short circuit breaking rating of 22kA at 240Vac. The terminals are of the press plate type.

Product Details

  • Ratings
    HACR rated
  • Tightening Torque
    40.71 lbf.in (4.6 N.m)
  • Number Of Poles
    1P
  • Number Of Panel Spaces
    1
  • Mounting Type
    Bolt-on
  • Height
    3 in (76.20 mm)
  • Range
    QO
  • Wire Size
    AWG 14...AWG 8 copper or aluminium
  • Product
    Miniature circuit-breaker
  • Circuit Breaker Type
    Standard
  • Electrical Connection
    Pressure plate
  • Width
    0.75 in (19.05 mm)
  • Current Rating
    20 A
  • Depth
    2.91 in (73.91 mm)
  • Approval:
    UL
  • Interrupting Rating:
    22 kA at 120/240 Volt AC
  • Type:
    Miniature
  • Used On:
    NQ Panelboard
  • Shipping Length:
    4.00 In.
  • Shipping Weight:
    0.40 lbs.
  • UPC:
    785901371731
  • Shipping Height:
    1.00 In.
  • Installation:
    Bolt-On
  • Volts:
    120/240 VAC 50/60 Hertz
  • Shipping Width:
    4.00 In.
  • Amps:
    32 A
  • Poles:
    1
  • Series:
    QOB-VH
  • Voltage Rating
    120/240 V AC 120 V AC
  • Interrupt Rating
    22 kA 120/240 V AC 50/60 Hz 22 kA 120 V AC 50/60 Hz

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOB120VH on Powermatic Associates is $77.76. Order now.
