QOU250VH Schneider Electric Industrial Automation Components

QOU250VH on Powermatic Associates
Schneider Electric

Part#:QOU250VH

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

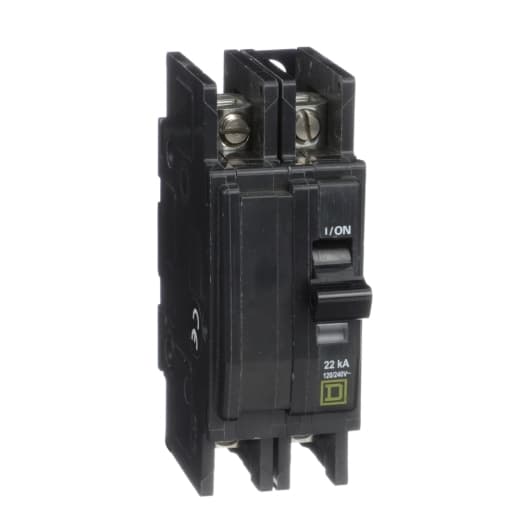

Square D by Schneider Electric QOU250VH is a unit-mount Miniature Circuit Breaker (MCB) designed for a rated current of 50A. It features slotted box lugs connections on both the load and line sides, accommodating a cross-section of 14-2AWG for 1 cable Al/Cu. This 2-pole MCB operates at a rated voltage of 120V to 240V AC, with a short circuit breaking rating of 22kA at 240Vac and 5kA at 48Vdc. The terminals are of the box lugs type, ensuring a secure connection for various applications.

Product Details

  • Electrical Connection
    Slotted box lugs, line side Slotted box lugs, load side
  • Tightening Torque
    45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
  • Depth
    2.95 in (74.93 mm)
  • AWG Gauge
    AWG 14...AWG 2 aluminium/copper
  • Height
    4.05 in (102.87 mm)
  • Mounting Mode
    Unit mount
  • Width
    1.5 in (38.10 mm)
  • [Ue] Rated Operational Voltage
    120/240 V AC
  • Circuit Breaker Application
    HACR and Switching Duty rated
  • Line Rated Current
    50 A
  • Product Or Component Type
    Miniature circuit-breaker
  • Range Of Product
    QOU
  • Circuit Breaker Type
    Standard

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOU250VH on Powermatic Associates is $204.12. Order now.
