RC200SFMG Schneider Electric Industrial Automation Components

RC200SFMG on Powermatic Associates
Schneider Electric

Part#:RC200SFMG

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

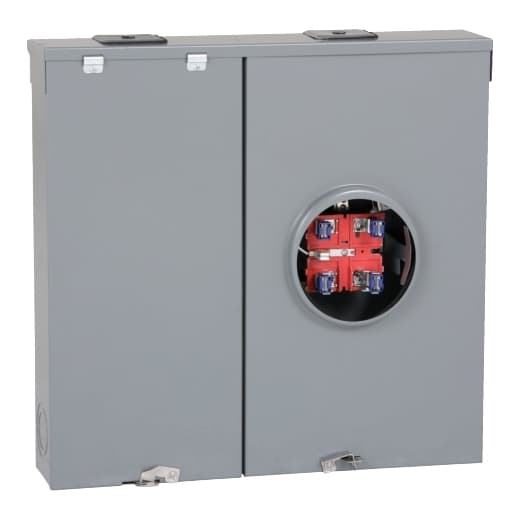

Square D by Schneider Electric RC200SFMG is a Combination Service Entrance Device (CSED) designed for surface mounting. It features a ringless meter socket without a bypass and supports a rated current of 200A. The connection type for both ground and line is through lugs. The dimensions of this device are H585mm x W611mm x D119mm (H23.03" x W24.04" x D4.67").

Product Details

  • Number Of Spaces
    0
  • Short-Circuit Current
    22 kA
  • Bypass Type
    No bypass
  • Width
    24.04 in (610.62 mm)
  • Depth
    4.67 in (118.62 mm)
  • Number Of Tandem Breakers
    0
  • Network Number Of Phases
    1
  • Line Rated Current
    200 A
  • Marking
    Florida metering group
  • Product Or Component Type
    Meter Mains
  • Disconnect
    Service disconnect (ordered separately)
  • Range Of Product
    QO
  • Hub Type
    A
  • Meter Socket Type
    Ringless
  • Mounting
    Surface outdoor)
  • Main Breaker Rating
    200 A
  • Number Of Circuits
    0
  • Height
    23.03 in (584.96 mm)
  • Service Feed Location
    OH UG
  • Electrical Connection
    Lugs line side Lugs service ground
  • Wire Size
    AWG 6...300 kcmil aluminium/copper)line side AWG 8...AWG 2/0 2 aluminium/copper)service ground
  • Tightening Torque
    Main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper Lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper Service ground 50 lb.in, AWG 3...AWG 2/0, aluminium/copper Service ground 45 lb.in, AWG 6...AWG 4, aluminium/copper Service gr

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RC200SFMG on Powermatic Associates is $1,124.20. Order now.
