Part#:RE22R1AKMR

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

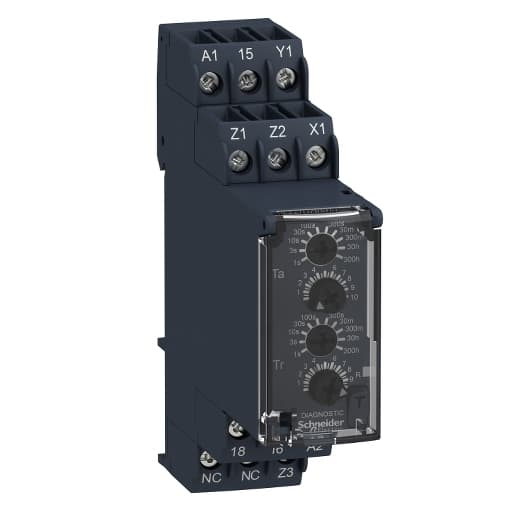

Schneider Electric RE22R1AKMR is an analog timer featuring modular design with a width of 18mm for DIN rail mounting. It offers dual function timing capabilities, including asymmetrical on-delay and off-delay relay functions with control signal and pause/summation control signal. The timer is controlled via a rotary knob, a diagnostic button, and an external potentiometer, with control signal pulse widths of 100ms (with load in parallel) and 30ms, and a recovery time of 120ms on de-energisation. It has a power-on delay of 100ms, operates with a rated current of 8 A, and falls under the RE22 sub-range. The housing is made from self-extinguishing material, offering a degree of protection of IP40 for the housing, IP20 for the terminals, and IP50 for the front face. Power consumption at 240Vdc is 1.5 W, and it features SPDT (Single Pole Double Throw) - 1C/O contacts, with a rated impulse voltage of 5 kV. The supply voltage ranges from 24-240 V AC/DC, with a minimum of 20.4 V. Display indicators include a green LED backlight for dial pointer indication, and yellow LEDs for various timing and relay status indications. It has an electrical durability of 100,000 operations at 250vac/24Vdc and 10,000,000 operations, with a time delay range of 1s to 300h. The timer operates within a temperature range of -20°C to +60°C.

Product Details

  • Time Delay Range
    30...300 h 3...30 min 30...300 s 0.05...1 s 30...300 min 10...100 s 0.3...3 s 3...30 h 1...10 s
  • Status LED
    Green LED backlight steady)dial pointer indication Yellow LED steady)output relay energised Yellow LED fast flashing)timing in progress and output relay de-energised Yellow LED slow flashing)timing in progress and output relay energised
  • Connections - Terminals
    Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
  • Control Type
    Rotary knob Diagnostic button Potentiometer external
  • Electrical Durability
    100000 cycles, 8 A at 250 V, AC-1 100000 cycles, 2 A at 24 V, DC-1
  • Safety Reliability Data
    B10d = 180000 MTTFd = 194 years
  • Control Signal Pulse Width
    100 ms with load in parallel 30 ms
  • Net Weight
    0.22 lb(US) (0.1 kg)
  • Mounting Support
    35 mm DIN rail conforming to EN/IEC 60715
  • Rated Impulse Withstand Voltage
    5 kV 1.2…50 µs IEC 60664-1
  • Switching Capacity In VA
    2000 VA
  • Minimum Switching Current
    10 mA 5 V DC
  • Recovery Time
    120 ms on de-energisation
  • Voltage Drift
    +/- 0.2 %/V
  • Setting Accuracy Of Time Delay
    +/- 10 % of full scale 25 °C IEC 61812-1
  • Temperature Drift
    +/- 0.05 %/°C
  • Width
    0.89 in (22.5 mm)
  • Mounting Position
    Any position
  • Overvoltage Category
    III IEC 60664-1
  • Creepage Distance
    4 kV/3 IEC 60664-1
  • Power On Delay
    100 ms
  • Mechanical Durability
    10000000 cycles
  • Maximum Switching Voltage
    250 V AC
  • Maximum Switching Current
    8 A
  • Immunity To Microbreaks
    10 ms
  • Insulation Resistance
    100 MOhm 500 V DC IEC 60664-1
  • Power Consumption In W
    1.5 W 240 V DC
  • Power Consumption In VA
    3 VA 240 V AC
  • Supply Frequency
    50...60 Hz +/- 5 %
  • Repeat Accuracy
    +/- 0.5 % IEC 61812-1
  • Voltage Range
    0.85...1.1 Us
  • Housing Material
    Self-extinguishing
  • Tightening Torque
    5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
  • Release Input Voltage
    <= 2.4 V
  • [Us] Rated Supply Voltage
    24...240 V AC/DC 50/60 Hz
  • Time Delay Type
    Asymmetrical on-delay and off-delay
  • Contacts Type And Composition
    1 C/O timed contact, cadmium free
  • Device Short Name
    RE22
  • Discrete Output Type
    Relay
  • Nominal Output Current
    8 A
  • Range Of Product
    Harmony Timer Relays
  • Product Or Component Type
    Dual function relay

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RE22R1AKMR on Powermatic Associates is $84.22. Order now.
