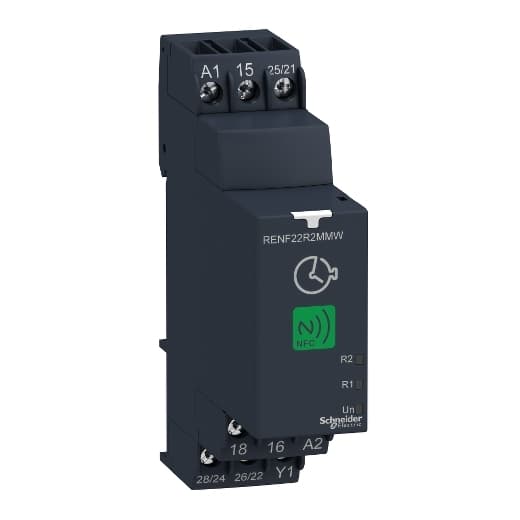

RENF22R2MMW Schneider Electric Industrial Automation Components

Product Details

• Time Delay Type
  Power on-delay On-delay and off-delay Pulse delay Asymmetrical on-delay and off-delay Interval Off-delay Symmetrical flashing Safe-guard Star-delta Asymmetrical flashing Bistable
• Status LED
  Un, green LED steady)power ON R1, amber LED steady)relay energised R2, amber LED steady)relay energised Pairing, green LED steady)communication status Un, green LED fast blinking)diagnosis mode R1, amber LED blinking)timing in pro
• Connections - Terminals
  Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
• Setting Accuracy Of Time Delay
  +/- 1 % 1...999 h 77 °F (25 °C) +/- 2 % 1 h 77 °F (25 °C) +/- 20 ms 100 ms...10 s 77 °F (25 °C)
• Power Consumption In W
  1.5 W 240 V DC 0.6 W 24 V DC
• Repeat Accuracy
  +/- 0.2 % 10 s...999 h +/- 0.5 % 100 ms...10 s
• Control Signal Pulse Width
  100 ms with load in parallel 60 ms no-load
• Tightening Torque
  5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1 5.3…8.8 lbf.in (0.60…0.99 N.m) IEC 60947-1
• Contacts Type And Composition
  2 C/O timed contact, cadmium free 1 C/O timed and instantaneous contact, cadmium free
• Net Weight
  0.20 lb(US) (0.0904 kg)
• Safety Reliability Data
  MTTFd = 227.5 years 100 % duty cycle continuous operating condition at 30 °C
• Width
  0.89 in (22.5 mm)
• Response Time
  2 s
• Mounting Support
  35 mm DIN rail conforming to EN/IEC 60715
• Maximum Communication Distance
  10 mm
• Mounting Position
  Any position
• Maximum Switching Voltage
  250 V
• Overvoltage Category
  III IEC 60664-1
• Creepage Distance
  4 kV/3 IEC 60664-1
• Power On Delay
  100 ms
Rated Impulse Withstand Voltage
5 kV 1.2/50 µs IEC 60664-1
Mechanical Durability
10000000 cycles
Electrical Durability
100000 cycles for resistive load, 8 A at 250 V, AC
Minimum Switching Current
10 mA 5 V
Maximum Switching Current
8 A
Voltage Drift
+/- 0.2 %/V
Power Consumption In VA
3 VA 240 V AC
Switching Capacity In VA
2000 VA
Recovery Time
120 ms on de-energisation
Insulation Resistance
100 MOhm 500 V DC IEC 60664-1
Housing Material
Self-extinguishing
Temperature Drift
+/- 0.05 %/°C
Maximum RF Power Transmitted
0.0002 mW
NFC Operating Frequency
13.56 MHz
Supply Frequency
50...60 Hz +/- 5 %
Voltage Range
0.85...1.1 Un
Release Input Voltage
<= 2.4 V
[Us] Rated Supply Voltage
24...240 V AC/DC
Product Compatibility
NFC enabled mobile device
Time Delay Range
0.1 s...999 h
Software Version
V4.4 and above
Product Or Component Type
Multifunction relay
Device Short Name
RENF22
App For Product
Zelio NFC downloadable from Google Play store)
Supported OS
Android
Nominal Output Current
8 A
Discrete Output Type
Relay
Range Of Product
Harmony Timer Relays
