Part#:RGF36300CU33A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

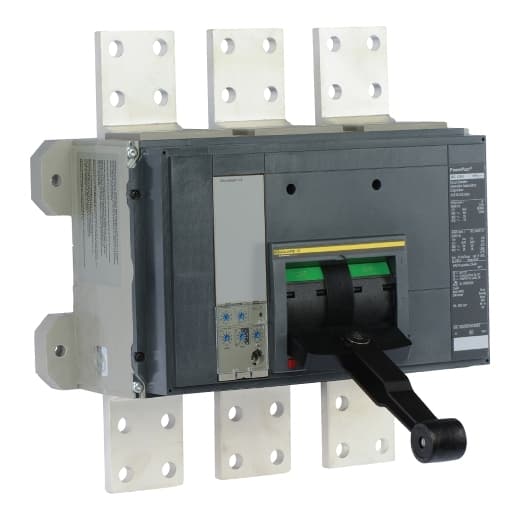

Square D by Schneider Electric RGF36300CU33A is a Molded Case Circuit Breaker (MCCB) designed for mounting on a plate and connects via busbar. It is part of the PowerPact RGF sub-range, with a rated current of 3000A and a rated voltage of 600V AC. This 3-pole MCCB features protection functions including Long-time (L), Short-time with fixed time delay (S), and Instantaneous (I) protection. It has a trip current rating and frame current rating of 3000 AT and 3000 AF, respectively. The short circuit breaking rating is specified as 65kA at 240Vac, 35kA at 480Y/277Vac and 480Vac, and 18kA at 600Y/347Vac and 600Vac. All three poles are protected, and it utilizes a Micrologic 5.0 (LSI) Electronic trip unit.

Product Details

  • Tightening Torque
    601.85 lbf.in (68 N.m) 0.08…0.62 in² (50…400 mm²) (AWG 1/0...750 kcmil) 601.85 lbf.in (68 N.m) 0.08…0.23 in² (50…150 mm²) (AWG 1/0...300 kcmil)
  • Electrical Connection
    Busbar connection line Busbar connection load
  • Continuous Current Rating
    100 %
  • Width
    16.53 in (419.86 mm)
  • Depth
    14.49 in (368.05 mm)
  • Height
    16.24 in (412.50 mm)
  • Breaking Capacity Code
    G
  • Number Of Poles
    3P
  • Product Or Component Type
    Circuit breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RGF36300CU33A on Powermatic Associates is $62,757.00. Order now.
