Part#:RJF36120

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

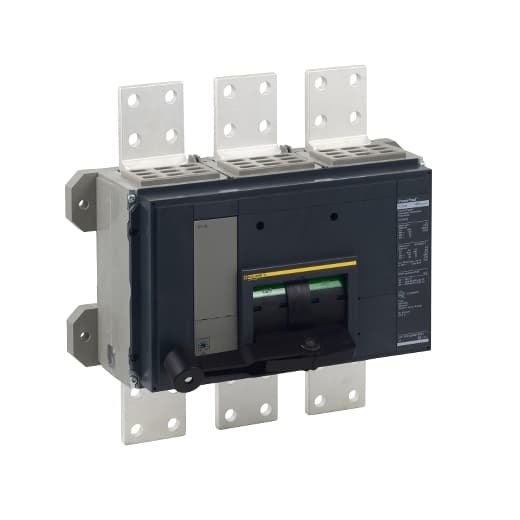

Square D by Schneider Electric RJF36120 is a Molded Case Circuit Breaker (MCCB) within the PowerPact RJF sub-range. This MCCB features a busbar connection type and is designed with 3 poles. It offers long-time protection (L) with a fixed setting. The RJF36120 has a rated current of 1200A and operates at a rated voltage of 600V AC. It is designed for mounting plate installation. The trip current rating is set at 1200 AT, with a frame current rating of 3000 AF. Its short circuit breaking rating is specified as 100kA at 240Vac, 65kA at both 480Y/277Vac and 480Vac, and 25kA at both 600Y/347Vac and 600Vac, covering all protected poles. The trip unit type equipped in this model is the ET1.0I (LI) Electronic, ensuring precise operation under designated electrical conditions.

Product Details

  • Continuous Current Rating
    80 %
  • Depth
    14.49 in (368.05 mm)
  • Height
    16.24 in (412.50 mm)
  • Number Of Poles
    3P
  • Product Or Component Type
    Circuit breaker
  • Breaking Capacity Code
    J
  • Width
    16.53 in (419.86 mm)
  • Electrical Connection
    Busbar connection line Busbar connection load
  • Tightening Torque
    601.85 lbf.in (68 N.m) 0.08…0.62 in² (50…400 mm²) (AWG 1/0...750 kcmil) 601.85 lbf.in (68 N.m) 0.08…0.23 in² (50…150 mm²) (AWG 1/0...300 kcmil)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RJF36120 on Powermatic Associates is $23,549.00. Order now.
