RJF36060CU74AE1 Schneider Electric Electronic Components

RJF36060CU74AE1 on Powermatic Associates
Schneider Electric

Part#:RJF36060CU74AE1

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

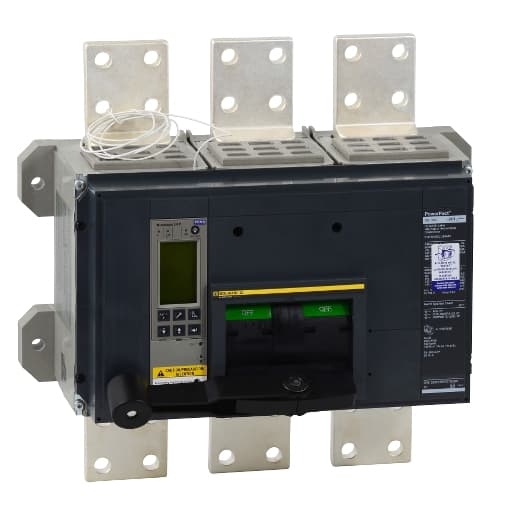

MOLDED CASE CIRCUIT BREAKER 600V 600A

Product Details

  • Poles Description
    3P
  • Trip Unit Technology
    Electronic, harmonic, Micrologic 6.0 H, LSIG
  • Mounting Mode
    Unit mount
  • Depth
    14.49 in (368.05 mm)
  • Range Of Product
    PowerPact R
  • Breaking Capacity Code
    J
  • Height
    16.24 in (412.50 mm)
  • [Ue] Rated Operational Voltage
    600 V AC
  • Current Sensor Rating Range
    600 A
  • Product Or Component Type
    Circuit breaker
  • [Ie] Rated Operational Current
    600 A
  • Width
    16.53 in (419.86 mm)
  • Continuous Current Rating
    100 %
  • Communication Interface
    Modbus
  • Electrical Connection
    Busbar connection line Busbar connection load
  • Tightening Torque
    601.85 lbf.in (68 N.m) 0.08…0.62 in² (50…400 mm²) (AWG 1/0...750 kcmil) 601.85 lbf.in (68 N.m) 0.08…0.23 in² (50…150 mm²) (AWG 1/0...300 kcmil)
  • Breaking Capacity
    100 kA 240 V AC 65 kA 480 V AC 25 kA 600 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RJF36060CU74AE1 Related Documents

Instruction Sheet-1631029670215.pdfCatalog-1631029670218.pdfProduct Datasheet-1631029670213.pdf

Similar products from: Schneider Electric Electronic Components
