Part#:RJF36080U33A

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

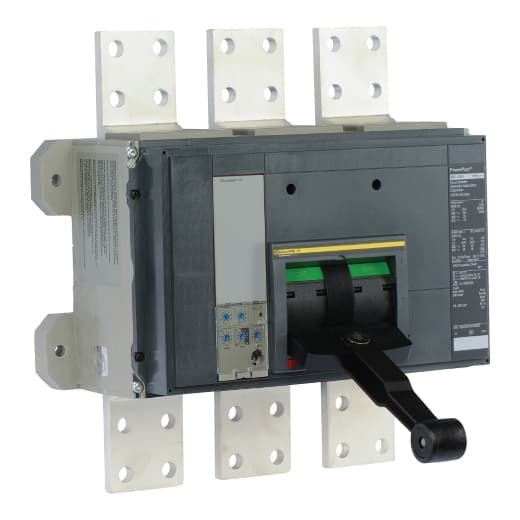

Square D by Schneider Electric RJF36080U33A is a Moulded Case Circuit Breaker (MCCB) within the PowerPact RJF sub-range, designed for busbar connections. This 3 Pole MCCB features protection functions including Long-time (L), Short-time with fixed time delay (S), and Instantaneous (I) protection. It has a rated current of 800A and operates at a rated voltage of 600V AC. The device is mounted using a mounting plate and has a trip current rating of 800 AT with a frame current rating of 3000 AF. Its short circuit breaking rating is specified as 100kA at 240Vac, 65kA at both 480Y/277Vac and 480Vac, and 25kA at both 600Y/347Vac and 600Vac. All three poles are protected, and it utilizes a Micrologic 5.0 (LSI) Electronic trip unit type.

Product Details

  • Breaking Capacity Code
    J
  • Width
    16.53 in (419.86 mm)
  • Continuous Current Rating
    80 %
  • Depth
    14.49 in (368.05 mm)
  • Height
    16.24 in (412.50 mm)
  • Number Of Poles
    3P
  • Product Or Component Type
    Circuit breaker
  • Electrical Connection
    Busbar connection line Busbar connection load
  • Tightening Torque
    601.85 lbf.in (68 N.m) 0.08…0.62 in² (50…400 mm²) (AWG 1/0...750 kcmil) 601.85 lbf.in (68 N.m) 0.08…0.23 in² (50…150 mm²) (AWG 1/0...300 kcmil)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RJF36080U33A Related Documents

Instruction Sheet-1631029499218.pdfCatalog-1631029499213.pdfProduct Datasheet-1631029499217.pdf
