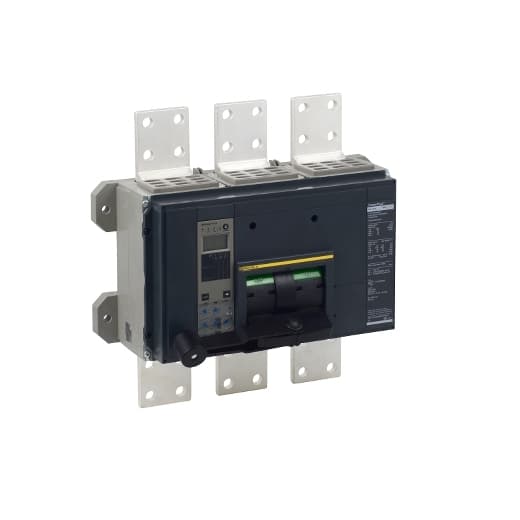

RLF36060CU44A Schneider Electric Industrial Automation Components

RLF36060CU44A on Powermatic Associates
Schneider Electric

Part#:RLF36060CU44A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - RLF36060CU44A

Product Details

  • Electrical Connection
    Busbar connection line Busbar connection load
  • Tightening Torque
    601.85 lbf.in (68 N.m) 0.08…0.62 in² (50…400 mm²) (AWG 1/0...750 kcmil) 601.85 lbf.in (68 N.m) 0.08…0.23 in² (50…150 mm²) (AWG 1/0...300 kcmil)
  • Breaking Capacity Code
    L
  • Width
    16.53 in (419.86 mm)
  • Product Or Component Type
    Circuit breaker
  • Number Of Poles
    3P
  • Depth
    14.49 in (368.05 mm)
  • Continuous Current Rating
    100 %
  • Height
    16.24 in (412.50 mm)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RLF36060CU44A Related Documents

Product Datasheet-1631028846513.pdfInstruction Sheet-1631028846520.pdfCatalog-1631028846514.pdf
