Part#:RXM2AB3F7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

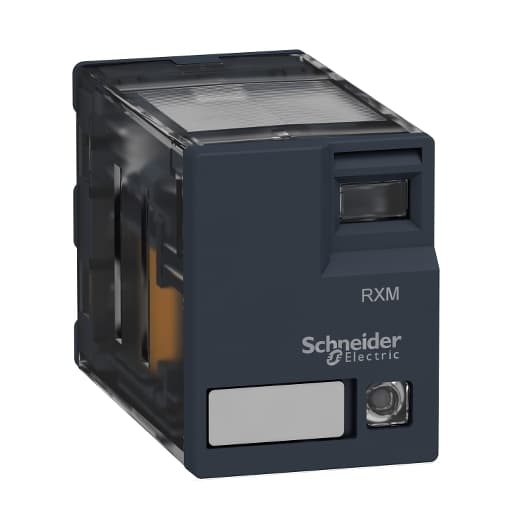

Schneider Electric RXM2AB3F7 is a miniature plug-in relay within the RXM sub-range, designed with Ag/Ni - Silver - Nickel alloy contacts. This relay features a 2C/O - DPDT (Double Pole Double Throw) contact type, with a control voltage of 120 Vac. It is rated for currents up to 12 A at both 250 Vac (AC-1) and 28 Vac (DC-1). The RXM2AB3F7 offers plug-in mounting and operates within an ambient air temperature range of -40 to +55 °C. It has an IP40 degree of protection and consumes 0.01 A of current with a power consumption of 1.2 VA. This relay includes a visual position indicator LED and boasts an electrical durability of 100,000 operations with a resistive load and a mechanical durability of 10,000,000 operations at no load.

Product Details

  • Series Name
    Miniature
  • Rated Operational Voltage Limits
    96...132 V AC
  • Device Short Name
    RXM
  • Contacts Material
    AgNi
  • Average Coil Consumption In VA
    1.2 60 Hz
  • Range Of Product
    Harmony Electromechanical Relays
  • Utilisation Coefficient
    20 %
  • Minimum Switching Capacity
    170 mW 10 mA, 17 V
  • Mechanical Durability
    10000000 cycles
  • Contacts Type And Composition
    2 C/O
  • [Uimp] Rated Impulse Withstand Voltage
    4 kV 1.2/50 µs
  • Status LED
    With
  • Average Consumption
    1.2 VA 60 Hz
  • Maximum Switching Capacity
    3000 VA/336 W
  • Operate Time
    20 ms
  • Control Type
    Without lockable test button
  • [Ithe] Conventional Enclosed Thermal Current
    12 A -40…131 °F (-40…55 °C)
  • Maximum Switching Voltage
    250 V IEC
  • Product Or Component Type
    Plug-in relay
  • Drop-Out Voltage Threshold
    >= 0.15 Uc
  • CAD Overall Height
    3.26 in (82.8 mm)
  • Shape Of Pin
    Flat
  • Electrical Durability
    100000 cycles resistive
  • [Uc] Control Circuit Voltage
    120 V AC 50/60 Hz
  • Operating Position
    Any position
  • Average Coil Resistance
    3630 Ohm 20 °C +/- 15 %
  • Test Levels
    Level A
  • Release Time
    20 ms
  • Safety Reliability Data
    B10d = 100000
  • Protection Category
    RT I
  • Net Weight
    0.08 lb(US) (0.037 kg)
  • CAD Overall Depth
    3.16 in (80.35 mm)
  • Device Presentation
    Complete product
  • Resistive Rated Load
    12 A 250 V AC 12 A 28 V DC
  • Operating Rate
    <= 1200 cycles/hour under load <= 18000 cycles/hour no-load
  • [Ui] Rated Insulation Voltage
    250 V IEC 300 V CSA 300 V UL
  • [Ie] Rated Operational Current
    12 A 28 V DC) NO IEC 12 A 250 V AC) NO IEC 6 A 28 V DC) NC IEC 6 A 250 V AC) NC IEC 12 A 28 V DC) UL 12 A 277 V AC) UL

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RXM2AB3F7 on Powermatic Associates is $6.95. Order now.
