Part#:RXM4AB1F7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

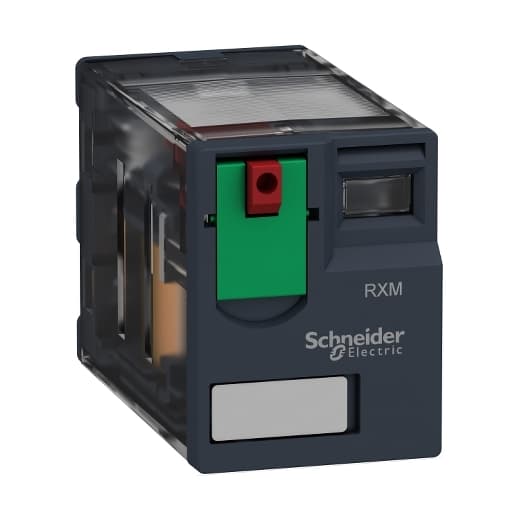

Schneider Electric RXM4AB1F7 is a miniature plug-in relay within the RXM sub-range, featuring 4C/O - 4PDT (4 Pole Double Throw) contacts made from an Ag/Ni - Silver - Nickel alloy. It operates with a control voltage of 120 Vac and is rated for currents up to 6 A at both 250 Vac (AC-1) and 28 Vac (DC-1). The relay is designed for plug-in mounting and can function within an ambient air temperature range of -40 to +55 °C. It has an IP40 degree of protection, consumes 0.01 A of current, and has a power consumption of 1.2 VA. The RXM4AB1F7 boasts an electrical durability of 100,000 operations with a resistive load and a mechanical durability of 10,000,000 operations at no load. Additionally, it features a Lockable Test Button (LTB) for latching purposes.

Product Details

  • [Uc] Control Circuit Voltage
    120 V AC 50/60 Hz
  • [Uimp] Rated Impulse Withstand Voltage
    2.5 kV 1.2/50 µs
  • Contacts Material
    AgNi
  • Minimum Switching Capacity
    170 mW 10 mA, 17 V
  • Average Coil Resistance
    3630 Ohm 20 °C +/- 15 %
  • Net Weight
    0.08 lb(US) (0.037 kg)
  • Series Name
    Miniature
  • [Ithe] Conventional Enclosed Thermal Current
    6 A -40…131 °F (-40…55 °C)
  • Maximum Switching Capacity
    1500 VA/168 W
  • Release Time
    20 ms
  • Device Presentation
    Complete product
  • Control Type
    Lockable test button
  • Electrical Durability
    100000 cycles resistive
  • CAD Overall Height
    3.11 in (79 mm)
  • Contacts Type And Composition
    4 C/O
  • Utilisation Coefficient
    20 %
  • Mechanical Durability
    10000000 cycles
  • Protection Category
    RT I
  • Status LED
    Without
  • Operate Time
    20 ms
  • CAD Overall Depth
    3.09 in (78.45 mm)
  • Device Short Name
    RXM
  • Maximum Switching Voltage
    250 V IEC
  • Average Consumption
    1.2 VA 60 Hz
  • Rated Operational Voltage Limits
    96...132 V AC
  • Product Or Component Type
    Plug-in relay
  • Operating Position
    Any position
  • Range Of Product
    Harmony Electromechanical Relays
  • Shape Of Pin
    Flat
  • Average Coil Consumption In VA
    1.2 60 Hz
  • Test Levels
    Level A
  • Safety Reliability Data
    B10d = 100000
  • Drop-Out Voltage Threshold
    >= 0.15 Uc
  • Resistive Rated Load
    6 A 250 V AC 6 A 28 V DC
  • Operating Rate
    <= 1200 cycles/hour under load <= 18000 cycles/hour no-load
  • [Ui] Rated Insulation Voltage
    250 V IEC 300 V CSA 300 V UL
  • [Ie] Rated Operational Current
    3 A 28 V DC) NC IEC 3 A 250 V AC) NC IEC 6 A 28 V DC) NO IEC 6 A 250 V AC) NO IEC 6 A 277 V AC) UL 8 A 30 V DC) UL

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RXM4AB1F7 on Powermatic Associates is $7.32. Order now.
