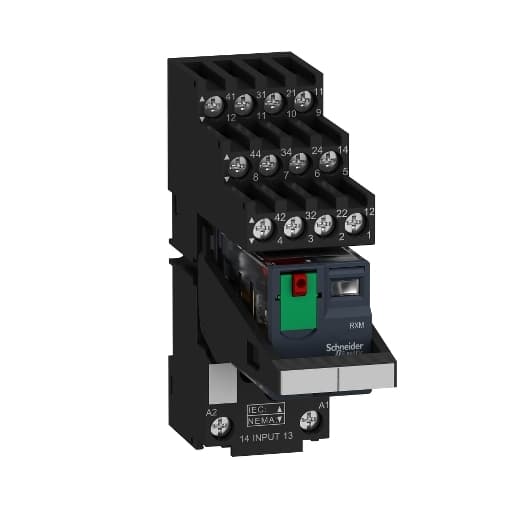

RXM4AB2B7PVS Schneider Electric Industrial Automation Components

Product Details

• Minimum Switching Capacity
  170 mW 10 mA, 17 V
• Range Of Product
  Harmony Electromechanical Relays
• [Ui] Rated Insulation Voltage
  250 V IEC
• Electrical Durability
  100000 cycles resistive
• Protection Category
  RT I
• Device Presentation
  Complete product
• [Ithe] Conventional Enclosed Thermal Current
  6 A -40…131 °F (-40…55 °C)
• Maximum Switching Capacity
  1500 VA/168 W AC/DC
• Test Levels
  Level A
• [Uc] Control Circuit Voltage
  24 V AC 50/60 Hz
• Minimum Switching Voltage
  17 V
• Mechanical Durability
  10000000 cycles
• Net Weight
  0.23 lb(US) (0.105 kg)
• Contacts Type And Composition
  4 C/O
• [Uimp] Rated Impulse Withstand Voltage
  2.5 kV 1.2/50 µs
• Maximum Switching Voltage
  250 V
• Average Coil Resistance
  180 Ohm 20 °C +/- 10 %
• CAD Overall Depth
  3.16 in (80.35 mm)
• Rated Operational Voltage Limits
  19.2...26.4 V AC
• Product Or Component Type
  Pre-assembled plug-in relay with socket
Torque Value
8.85 lbf.in (1 N.m)
Utilisation Coefficient
20 %
Operate Time
20 ms
CAD Overall Width
1.06 in (26.9 mm)
Series Name
Miniature
Contacts Material
AgNi
Average Coil Consumption In W
1.2 W, AC
Release Time
20 ms
Operating Position
Any position
Device Short Name
RXM
Sale Per Indivisible Quantity
30
Status LED
With
Minimum Switching Current
10 mA
Drop-Out Voltage Threshold
>= 0.3 Uc AC
Safety Reliability Data
B10d = 100000
Control Type
Lockable test button
CAD Overall Height
3.26 in (82.8 mm)
Resistive Rated Load
6 A 250 V AC 6 A 28 V DC
Operating Rate
<= 1200 cycles/hour under load <= 18000 cycles/hour no-load
Connections - Terminals
Connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end Connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end Connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end Connector, 2 x 0.5
[Ie] Rated Operational Current
3 A 28 V DC) NC IEC 3 A 250 V AC) NC IEC 6 A 28 V DC) NO IEC 6 A 250 V AC) NO IEC 6 A 277 V AC) UL 8 A 30 V DC) UL
