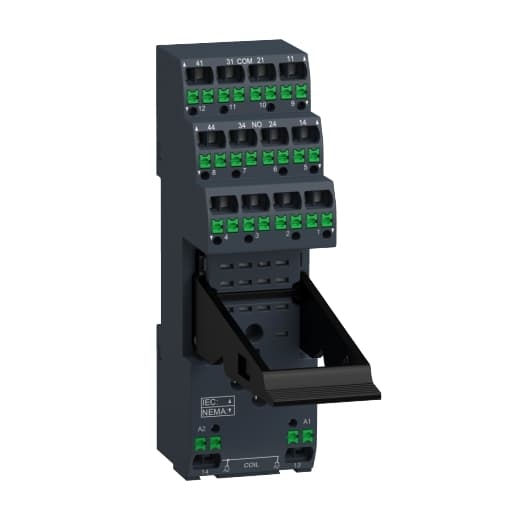

RXZE14P Schneider Electric Industrial Automation Components

RXZE14P on Powermatic Associates
Schneider Electric

Part#:RXZE14P

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - RXZE14P

Product Details

  • Device Short Name
    RXZ
  • Marking
    CE
  • Shape Of Pin
    Flat
  • Width
    1.22 in (31 mm)
  • Sale Per Indivisible Quantity
    10
  • Height
    3.35 in (85 mm)
  • Product Or Component Type
    Socket
  • Fixing Mode
    Clip-on 35 mm symmetrical DIN rail)
  • Contact Terminal Arrangement
    Separate
  • Net Weight
    0.18 lb(US) (0.080 kg)
  • Length
    3.86 in (98 mm)
  • Range Of Product
    Harmony Electromechanical Relays Harmony Timer Relays
  • Product Compatibility
    Plug-in relay RXM 2 C/O Plug-in relay RXM 4 C/O
  • [Ue] Rated Operational Voltage
    250 V IEC 300 V UL
  • [Ith] Conventional Free Air Thermal Current
    12 A 2 C/O relays 6 A 4 C/O relays
  • Connections - Terminals
    Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) flexible with cable end Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) solid without cable end

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RXZE14P on Powermatic Associates is $7.82. Order now.
