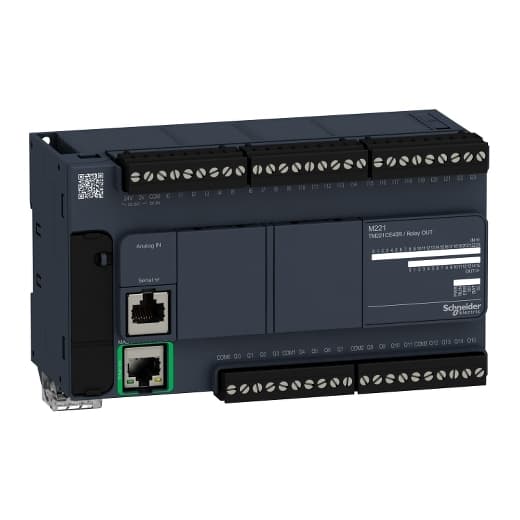

TM221CE40R Schneider Electric Industrial Automation Components

Product Details

• Analogue Input Number
  2 0...10 V
• Voltage State 1 Guaranteed
  >= 15 V input
• Discrete Output Number
  16 relay
• Discrete I/O Number
  40
• LSB Value
  10 mV
• Range Of Product
  Modicon M221
• Voltage State 0 Guaranteed
  <= 5 V input
• Maximum Current Per Output Common
  7 A
• Backup Time
  1 year 77 °F (25 °C) by interruption of power supply)
• Depth
  2.76 in (70 mm)
• Discrete Output Current
  2 A
• Discrete Input Voltage Type
  DC
• Realtime Clock
  With
• Data Backed Up
  256 kB built-in flash memory backup of application and data
• Discrete Output Type
  Relay normally open
• Maximum Number Of I/O Expansion Module
  7 relay output
• Discrete Input Voltage
  24 V
• Absolute Accuracy Error
  +/- 1 % of full scale analog input
• Protection Type
  Without protection 5 A
• Regulation Loop
  Adjustable PID regulator up to 14 simultaneous loops
Conversion Time
1 ms per channel + 1 controller cycle time analog input
Data Storage Equipment
2 GB SD card optional)
Clock Drift
<= 30 s/month 77 °F (25 °C)
Net Weight
1.01 lb(US) (0.456 kg)
Discrete Input Number
24, discrete input IEC 61131-2 Type 1
Network Frequency
50/60 Hz
Reset Time
1 s
Execution Time For 1 Kinstruction
0.3 ms event and periodic task
Sensor Power Supply
24 V DC 250 mA supplied by the controller
[Us] Rated Supply Voltage
100...240 V AC
Discrete Input Logic
Sink or source (positive/negative)
Exct Time For Event Task
60 µs response time
Port Ethernet
10BASE-T/100BASE-TX 1 328.08 ft (100 m) copper cable
Width
6.30 in (160 mm)
Product Or Component Type
Logic controller
Mechanical Durability
20000000 cycles relay output
Execution Time Per Instruction
0.2 µs Boolean
Supply
Serial)serial link supply 5 V, <200 mA
Marking
CE
Inrush Current
40 A
Switching Frequency
20 switching operations/minute with maximum load
Height
3.54 in (90 mm)
Supply Voltage Limits
85…264 V
Minimum Load
1 mA 5 V DC relay output
Analogue Input Resolution
10 bits
Battery Type
BR2032 lithium non-rechargeable 4 year(s)
Counting Input Number
4 fast input (HSC mode) 100 kHz 32 bits
Memory Capacity
256 kB user application and data RAM 10000 instructions 256 kB internal variables RAM
Discrete Input Current
7 mA discrete input 5 mA fast input
Permitted Overload On Inputs
+/- 30 V DC 5 min maximum)analog input +/- 13 V DC permanent)analog input
Maximum Power Consumption In VA
70 VA 100...240 V with max number of I/O expansion module 41 VA 100...240 V without I/O expansion module
Power Supply Output Current
0.52 A 5 V expansion bus 0.24 A 24 V expansion bus
Output Voltage Limits
125 V DC 277 V AC
Discrete Output Voltage
5...125 V DC 5...250 V AC
Integrated Connection Type
USB port mini B USB 2.0 Non isolated serial link serial 1 RJ45 RS232/RS485 Ethernet RJ45
Communication Port Protocol
USB port USB - SoMachine-Network Non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network Ethernet
Transmission Rate
1.2...115.2 kbit/s (115.2 kbit/s by default) 49.21 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.84 ft (3 m) RS232 480 Mbit/s USB
Configurable Filtering Time
0 ms input 3 ms input 12 ms input
Mounting Support
Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Input Impedance
3.4 kOhm discrete input 100 kOhm analog input 4.9 kOhm fast input
Counter Function
Single phase A/B Pulse/direction
Maximum Cable Distance Between Devices
Shielded cable <32.81 ft (10 m) fast input Unshielded cable <98.43 ft (30 m) output Unshielded cable <98.43 ft (30 m) digital input Unshielded cable <3.28 ft (1 m) analog input
Maximum Size Of Object Areas
8000 %MW memory words 255 %TM timers 512 %KW constant words 255 %C counters 512 %M memory bits
Communication Service
DHCP client Modbus TCP client Ethernet/IP adapter Modbus TCP server Modbus TCP slave device
Electrical Durability
100000 cycles AC-12, 120 V, 240 VA, resistive 100000 cycles AC-12, 240 V, 480 VA, resistive 300000 cycles AC-12, 120 V, 80 VA, resistive 300000 cycles AC-12, 240 V, 160 VA, resistive 100000 cycles AC-15, cos phi = 0.35, 120 V, 60 VA, i
Electrical Connection
removable screw terminal block for inputs removable screw terminal block for outputs terminal block, 3 for connecting the 24 V DC power supply connector, 4 for analogue inputs Mini B USB 2.0 connector for a programming terminal
Insulation
Between input and internal logic 500 V AC Non-insulated between analogue input and internal logic Non-insulated between analogue inputs Between supply and ground 1500 V AC Between sensor power supply and ground 500 V AC Between in
Response Time
35 µs turn-off, I2...I5 input 10 ms turn-on output 10 ms turn-off output 5 µs turn-on, I0, I1, I6, I7 fast input 35 µs turn-on, other terminals input 5 µs turn-off, I0, I1, I6, I7 fast input 100 µs turn-off, other terminals i
Local Signalling
for PWR 1 LED (green) for RUN 1 LED (green) for module error (ERR) 1 LED (red) for SD card access (SD) 1 LED (green) for BAT 1 LED (red) for I/O state 1 LED per channel (green) for SL 1 LED (green) for ACT Etherne
