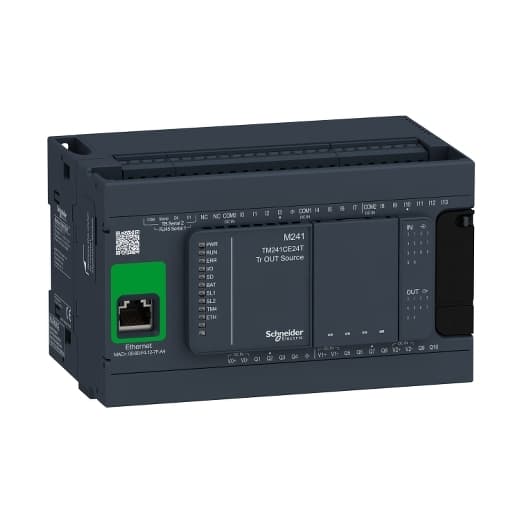

TM241CE24T Schneider Electric Industrial Automation Components

Product Details

• Discrete Input Voltage
  24 V
• Supply Voltage Limits
  20.4…28.8 V
• Range Of Product
  Modicon M241
• Discrete Output Type
  Transistor
• Discrete Output Number
  10 transistor 4 fast output
• Inrush Current
  50 A
• Discrete Output Logic
  Positive logic (source)
• Maximum Voltage Drop
  <1 V
• Discrete I/O Number
  24
• [Us] Rated Supply Voltage
  24 V DC
• Realtime Clock
  With
• Product Or Component Type
  Logic controller
• Power Consumption In W
  32.6…40.4 W with max number of I/O expansion module)
• Discrete Output Voltage
  24 V DC transistor output
• Discrete Input Logic
  Sink or source
• Depth
  3.74 in (95 mm)
• Discrete Input Number
  14, discrete input 8 fast input IEC 61131-2 Type 1
• Voltage State 0 Guaranteed
  <= 5 V input
• Maximum Tungsten Load
  <2.4 W
• Voltage State 1 Guaranteed
  >= 15 V input
Maximum Leakage Current
5 µA output
Backup Time
2 years 77 °F (25 °C)
Data Backed Up
128 MB built-in flash memory backup of user programs
Communication Port Protocol
Non isolated serial link Modbus master/slave
Marking
CE
Port Ethernet
10BASE-T/100BASE-TX - 1 copper cable
Height
3.54 in (90 mm)
Clock Drift
<= 60 s/month 77 °F (25 °C)
Discrete Input Voltage Type
DC
Output Voltage Limits
30 V DC
Battery Type
BR2032 lithium non-rechargeable 4 year(s)
Net Weight
1.17 lb(US) (0.53 kg)
Width
5.91 in (150 mm)
Data Storage Equipment
<= 16 GB SD card optional)
Supply
Serial 1)serial link supply 5 V, <200 mA
Web Services
Web server
Maximum Number Of I/O Expansion Module
7 local 14 remote
Discrete Input Current
5 mA input 10.7 mA fast input
Reset Time
10 ms automatic reset output 12 s automatic reset fast output
Discrete Output Current
0.5 A transistor output Q0...Q9) 0.1 A fast output (PTO mode) Q0...Q3)
Number Of Slave
64 Modbus TCP 16 EtherNet/IP
Electrical Connection
removable screw terminal block for inputs and outputs pitch 5.08 mm) removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
Cycle Time
10 ms 16 EtherNet/IP 64 ms 64 Modbus TCP
Positioning Functions
PTO 4 100 kHz) PTO 4 transistor output 1 kHz)
Execution Time For 1 Kinstruction
0.3 ms event and periodic task 0.7 ms other instruction
Memory Capacity
8 MB program 64 MB system memory RAM
Counting Input Number
4 fast input (HSC mode) 200 kHz 14 standard input 1 kHz
Input Impedance
4.7 kOhm input 2.81 kOhm fast input
Accuracy
+/- 0.1 % 0.02…0.1 kHz fast output +/- 1 % 0.1…1 kHz fast output
Mounting Support
Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Control Signal Type
A/B 100 kHz fast input (HSC mode) Pulse/direction 200 kHz fast input (HSC mode) Single phase 200 kHz fast input (HSC mode)
Protection Type
Short-circuit protection Short-circuit and overload protection with automatic reset Reverse polarity protection fast output
Maximum Current Per Output Common
2 A Q0...Q3 fast output 2 A Q4...Q7 output 1 A Q8...Q9 output
Maximum Output Frequency
20 kHz fast output (PWM mode) 100 kHz fast output (PLS mode) 1 kHz output
Maximum Cable Distance Between Devices
Unshielded cable <164.04 ft (50 m) input Shielded cable <32.81 ft (10 m) fast input Unshielded cable <164.04 ft (50 m) output Shielded cable <9.84 ft (3 m) fast output
Transmission Rate
1.2...115.2 kbit/s (115.2 kbit/s by default) 49.21 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.84 ft (3 m) RS232 480 Mbit/s 9.84 ft (3 m) USB 10/100 Mbit/s Ethernet
Application Structure
8 external event tasks 8 event tasks 3 cyclic master tasks + 1 freewheeling task 4 cyclic master tasks
Integrated Connection Type
Non isolated serial link serial 1 RJ45 RS232/RS485 Non isolated serial link serial 2 removable screw terminal block RS485 USB port mini B USB 2.0 Ethernet RJ45
Surge Withstand
1 kV power lines (DC) common mode EN/IEC 61000-4-5 1 kV shielded cable common mode EN/IEC 61000-4-5 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 1 kV relay output differential mode EN/IEC 61000-4-5 1 kV input common mode
Maximum Number Of Connections
8 Modbus server 8 SoMachine protocol 10 web server 4 FTP server 16 Ethernet/IP target 8 Modbus client
Configurable Filtering Time
1 µs fast input 12 ms fast input 0 ms input 1 ms input 4 ms input 12 ms input
Insulation
Between supply and internal logic 500 V AC Non-insulated between supply and ground Between input and internal logic 500 V AC Non-insulated between inputs Between fast input and internal logic 500 V AC Between output and internal l
Response Time
50 µs turn-on, I0...I13 input 50 µs turn-off, I0...I13 input <= 2 µs turn-on, I0...I7 fast input <= 2 µs turn-off, I0...I7 fast input <= 34 µs turn-on, Q0...Q9 output <= 250 µs turn-off, Q0...Q9 output <= 2 µs turn-on, Q0...Q
Local Signalling
for PWR 1 LED (green) for RUN 1 LED (green) for module error (ERR) 1 LED (red) for I/O error (I/O) 1 LED (red) for SD card access (SD) 1 LED (green) for BAT 1 LED (red) for SL1 1 LED (green) for SL2 1 LED (green)<
Ethernet Services
FDR DHCP server via TM4 Ethernet switch network module DHCP client embedded Ethernet port SMS notifications Updating firmware SNMP client/server Programming NGVL Monitoring IEC VAR ACCESS FTP client/server
